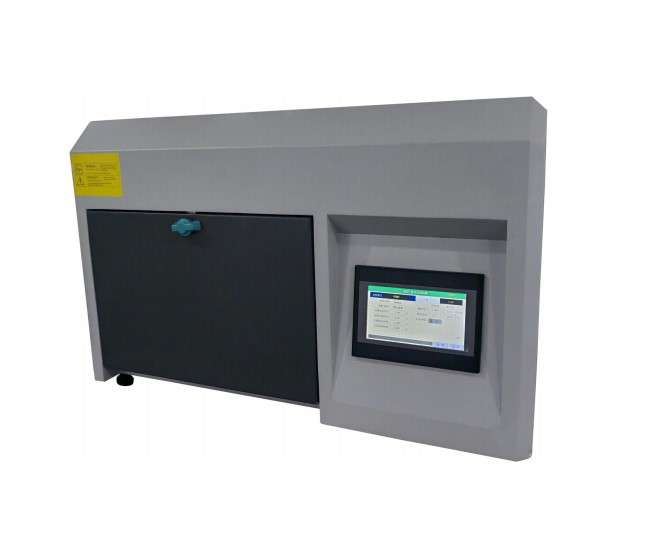

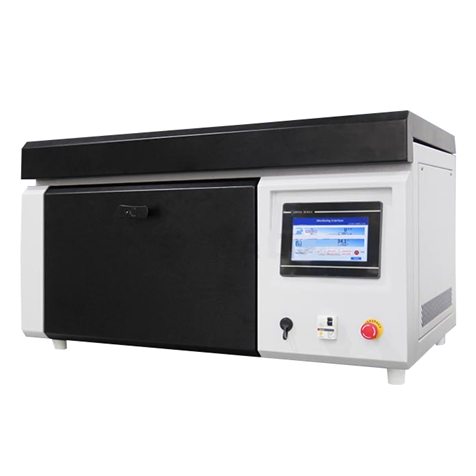

PW-CX1800 Air-cooled Xenon Lamp Aging Chamber
This equipment is a simple desktop xenon lamp aging chamber, which can be used in various auto interiors, plastics, paint, coating, E-meter, textiles, printing and dyeing, dyestuff, decorative materials, wooden floors, safe hats, leathers, petrochemicals, rubber, ect., which is simulating the artificial aging of sunshine test and light resistance, climate resistance,
perspiration&light resistance, ect. By setting radiation energy, temperature, humidity, spray, light alternated with darkness in the test chamber, to provide standard necessary for a simulation of natural environment and then test the material of property evolution, such as fade, aging, soft, hard, break, ect.
1. Exposure method: Up and down adjustable sample tray, three-dimensional space can test 3D specimens;
2. Light source system:apply imported long arc xenon lamp, high-intensity, 1.8KW professional AC air-cooled xenon arc lamp;
3. Using specialized filter components, and the filtered spectrum fully conform to GB, FZ, AATCC, ISO, JIS, ect.
4. Irradiance control: digital setting of light intensity , real-time monitor, self-regulation,meet the stability requirements of different standards for the test light source( can switch to 420nm, 340nm, 300-400nm or 300-800nm single-band monitoring)
5. Temperature control: black-panel thermometer (BPT), black-label thermometer(BST), can switch to air temperature (CHT) and test as the sample at the same station, which truly reflects the test condition of the sample , and tested data is displayed on color screen in the form of numbers,graphs, curves, ect. by CPU . No need to stop observing.
6. Humidification display: the instrument has humidity display value, not controlled.
7. Data output mode: the apparatus is equipped with a USB port, and the test data can be directly exported to the EXL table file and read on the computer by using the U disk.
8. Data display mode: 7-inch weinveiw color touch screen display and control, support Chinese and English operation, multiple test monitoring modes(numbers, curves, forms), simply control, intuitive and clear.
9. Standard setting: custom setting or program setting, AATCC, ISO, GB, JIS and other test standards, which can be permanently saved after setting.
10. Monitoring interface: friendly monitoring interface, running curve (see picture).
Model : PW-CX1800B
External dimension: 580 mm×600 mm×650 mm(D×W×H)
Net Weight: 5 5 KG
Lamp tube power: 1.8KW (air-cooled imported long xenon arc lamp)
Lamp tube life: work 1200 hours.
Energy control point(indicate that you need to choose one band when ordering): @340nm、@420nm、@300nm~400nm、@280nm~800nm
Radiation intensity:(indicate the need for strength control points when ordering) 0.25~0.38W/m2@340nm 0.45~0.71W/m2@420nm 20~51W/m2@300~400nm 500~650W/m2@300~800nm
Irradiation regulation: build-in sun eye, radiation closed-loop monitoring PID self-regulation.
Filter: special glass filter combinations to simulate different environments
Black-panel temperature : 38~89°C (adjustable)
Temperature fluctuation: ±2°C
Temperature uniformity: ±3°C
Humidity display: no humidity
Spray system: no spray
Sample tray: Tablet 290mm×315mm
Specimen capacity: test standard finished sample and three-dimensional sample.
Dark and light cycle: 0~9999H cycle setting
Imported lamp tube: 1
Box structure : composed of test chamber, heating/light/dark/ wind circle system and electrical control cabinet.
Shelf material: advanced stainless steel plate or A3 colorful stainless plate with color powder treatment.
Inner material: SUS304 stainless steel plate, corrosion resistant, simply clean, good appearance.

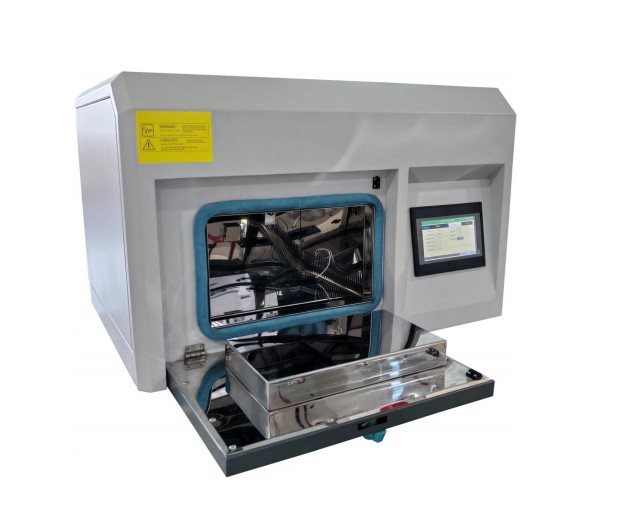

Box door: open downwards, easy to operate, save space, the door sides are tightly sealed by imported silicone rubber.
Sample holder: all stainless steel, bending and forming.
Display screen: seven inches colorized touching screen man-machine interface
Operation language: Chinese
Run mode: program run( dark, light cycle mode) or fixed value run.
Test standard: customized value or program setting, can set AATCC, ISO, GB, JIS and other test standards and save it permanently.
Operation project: black-panel temperature (BPT), black label temperature(BST)，relative humidity, irradiance, xenon lamp tube temperature, irradiation exposure timing, overtemperature setting, run time setting, spray time (spray and stop cycle), temperature and humidity irradiance of running curve monitor, running monitor, alarm monitor;
Alarm protection: overtemperature, fan overload, overheating xenon lamp, water shortage in water tank, lack of power supply phase, humidifier anti- dry burning, ect. When each fault occurs, the display screen intuitively indicate the cause of the machine fault and the troubleshooting method, and the linkage protection function is activated.
Data stock: large capacity data storage function, USB port U disk direct export.
Lamp tube protection: in order to make the lamp work normally without damage, this equipment uses a cooling system to interlock with the lamp. If the cooling system fails, the xenon lamp will extinguish automatically and the whole machine will stop working.
Lamp over-temperature: independent lamp over-temperature protection setting, extending the life of the lamp without over-temperature damage.
Power phase sequence: phase loss,phase sequence, leakage, protect the machine from damage when the power fails.
Motor protection: motor thermal overload protection to protect the motor from running stably.
Over-temperature protection: the control system interface has over-temperature temperature set value protection, if the temperature in the box exceeds the set value, the alarm will start.
Installed power : AC220V 50HZ
Installed power : full machine 3.5KW
Around environment:no strong vibration
Environmental temperature: 15~25°C, humidity<90%R.H
After the installation and debugging at the purchaser’s site is completed, the supply and purchaser parties shall participate in the acceptance inspection at the purchaser’s unit.
The content of acceptance shall be in accordance with the technical agreement. Other unmentioned parts shall be implemented according to the relevant national standards of the test equipment.
Professional packaging;
Transportation method: car transportation.
Payment method: 50% deposit in advance, full payment before shipment;
Delivery date: shipping within 30 working days, the payment arrives on the supplier’s account;
Delivery address: the buyer’s factory, on-site installation.
One-year warranty, lifetime service.
Free installation, debugging and training at the buyer’s site.
Comprehensive technical training can be provided, and timely and complete after-sales service shall be provided for equipment maintenance, spare parts supply and other aspects.
