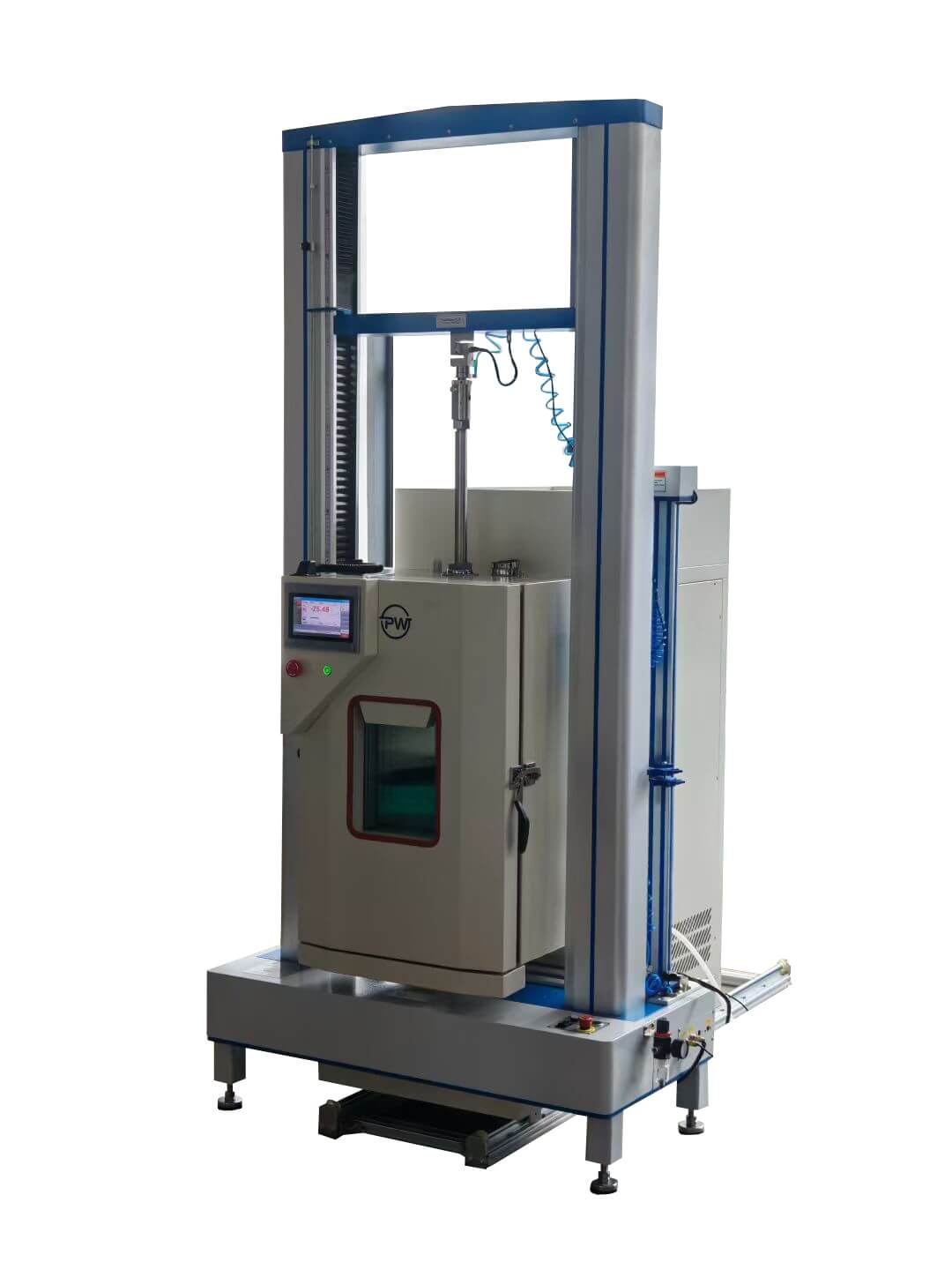

PW-UCD128A-40A High and Low Temperature Tensile Tester
Widely used in industries such as rubber and plastics, polymer materials, adhesives, and adhesive tapes. It is suitable for testing the tensile strength, elongation, Poisson’s ratio, planar compression strength, and compression ratio of materials under various conditions, including ambient temperature, low temperature, and high temperature. The ambient temperature mode can be switched on conveniently and quickly, allowing for a single machine with multiple uses.

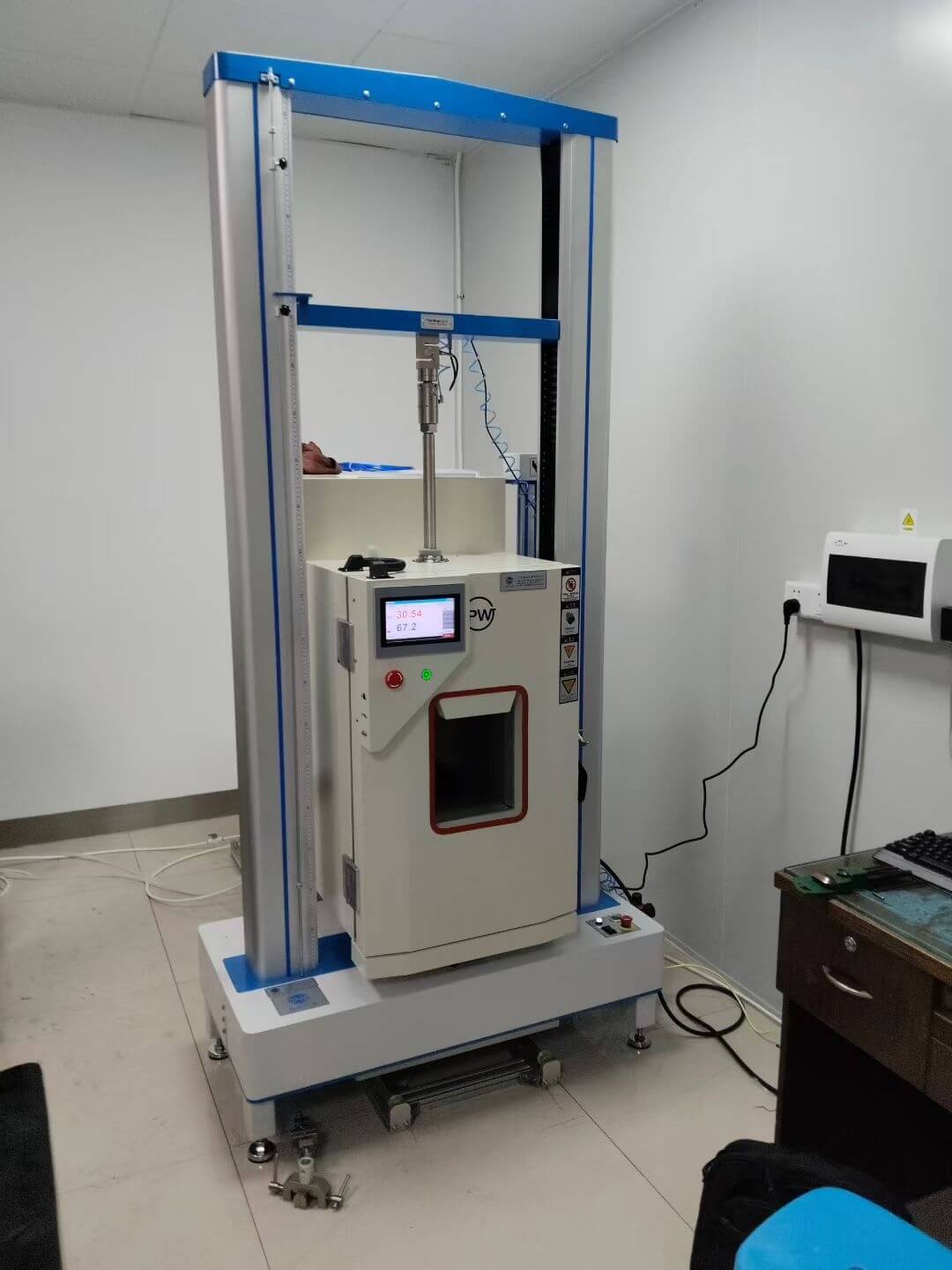

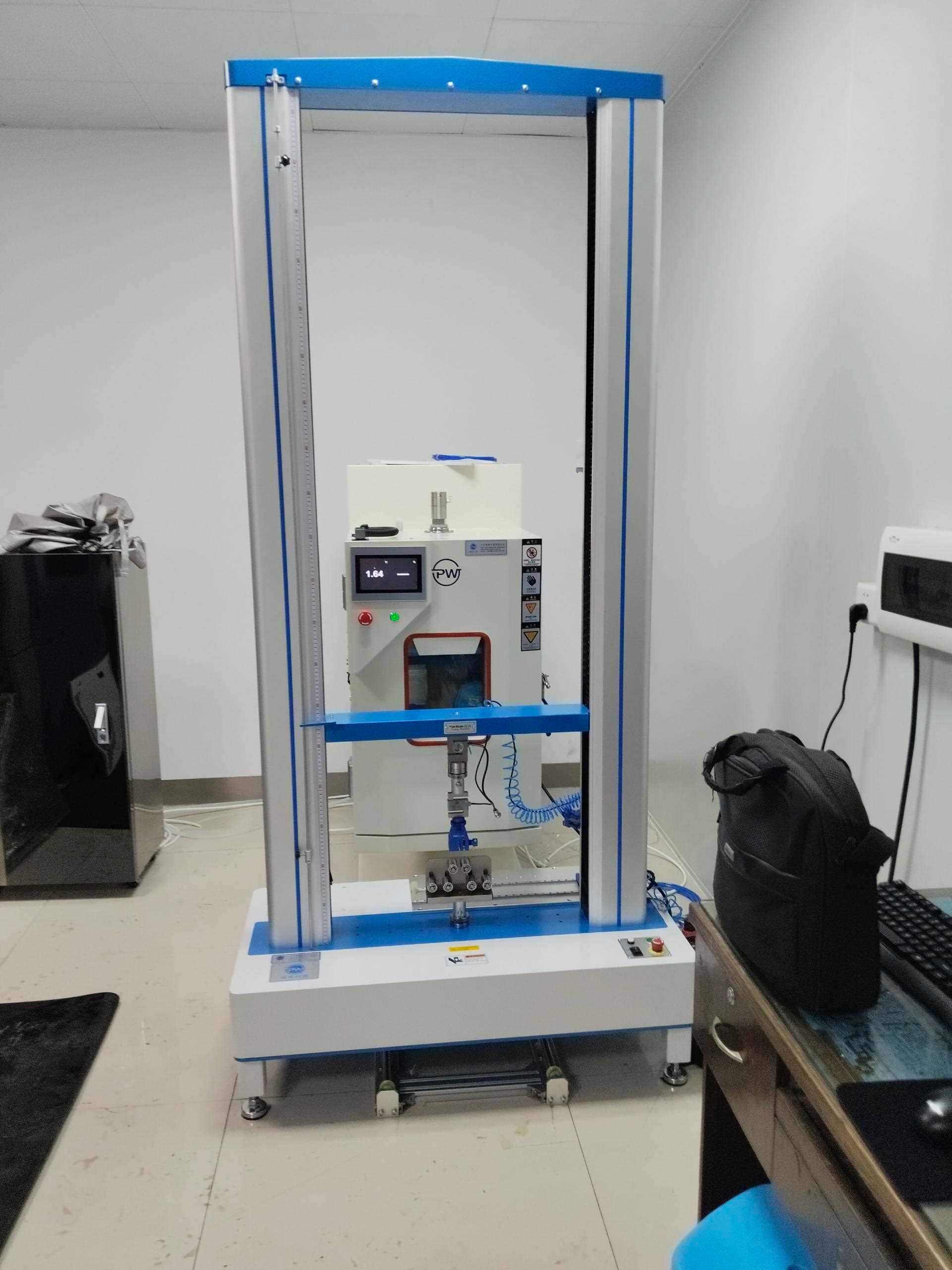

The constant temperature and humidity tensile testing machine is a specially modified model for environmental testing. Equipped with a constant temperature and humidity chamber, it can test the physical properties of materials, such as tensile force, compressive force, tear strength, shear force, peel strength, unwind force, and tack (ring method), under different humidity and temperature environments. For ambient temperature testing, the constant temperature and humidity chamber can be moved aside to increase usable space and convenience.
The measurement and control system is specifically designed for microcomputer electronic universal testing machines, microcomputer hydraulic universal testing machines, and microcomputer presses. It can perform tensile, compression, bending, shear, tear, and peel tests. A PC and interface board are used for data acquisition, storage, processing, and printing test results. It can calculate parameters such as maximum force, yield force, average peel force, maximum deformation, yield point, and elastic modulus. It supports curve processing, multiple sensors, a graphical interface, flexible data processing, and MS-ACCESS database support, making the system more powerful.
Capacity: Max 1000KG, with various capacity options and dual-capacity configurations available.
Temperature Range: -40°C~150°C
Display: Computer display mode
Force Resolution: 1/1,000,000
Force Accuracy: 0.03%
Accuracy Class: 0.5 Class
Travel Resolution: 1/1,000,000
Control Method: Full computer operation mode
Temperature Control: PID automatic calculation, stable error
Display Accuracy: 0.1°C
Temperature Accuracy: ±1°C
Circulation System: Fan forced circulation system
Heating System: SUS304 stainless steel heat dissipation heater
Protection Device: Leakage and overload protector
Chamber Material: SUS#304 stainless steel
Refrigeration Method: French Tecumseh compressor refrigeration, adopting cold balance temperature control method. No heating during low-temperature refrigeration, energy-saving and environmentally friendly.
Temperature Control: 7-inch touch screen display, multi-program editing.
Test Travel: 60 cm
Test Chamber Space: Approximately 400*400*800mm (W×D×H)
Test Speed: 0.01~500mm/min, computer set, with quick up/down adjustment buttons for fixtures.
Force Unit Conversion: kgf, N, Ibf, g, ton, Mpa
Stop Modes: Overload stop, emergency stop button, specimen break automatic stop, upper and lower limit setting automatic stop, automatic reset function.
Machine Power: Servo motor driven, synchronous wheel and precision ball screw transmission.
Total Power: Approximately 5KW
Machine Weight: Approximately 740kg
Power Supply: 220V/380V 50/60HZ 30A
Standard Configuration: 1 set of tensile grips, software, computer connection cable, one sensor.
