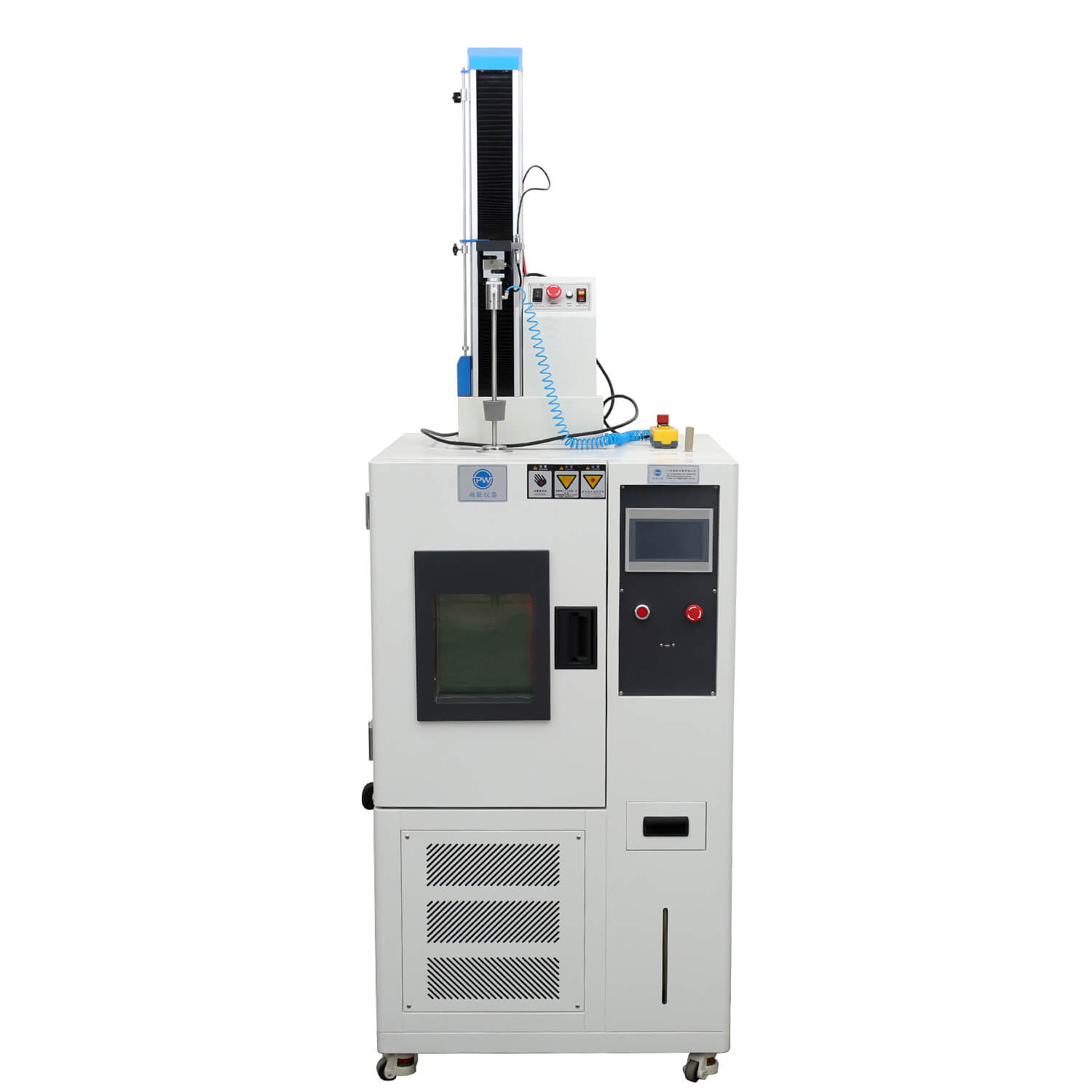

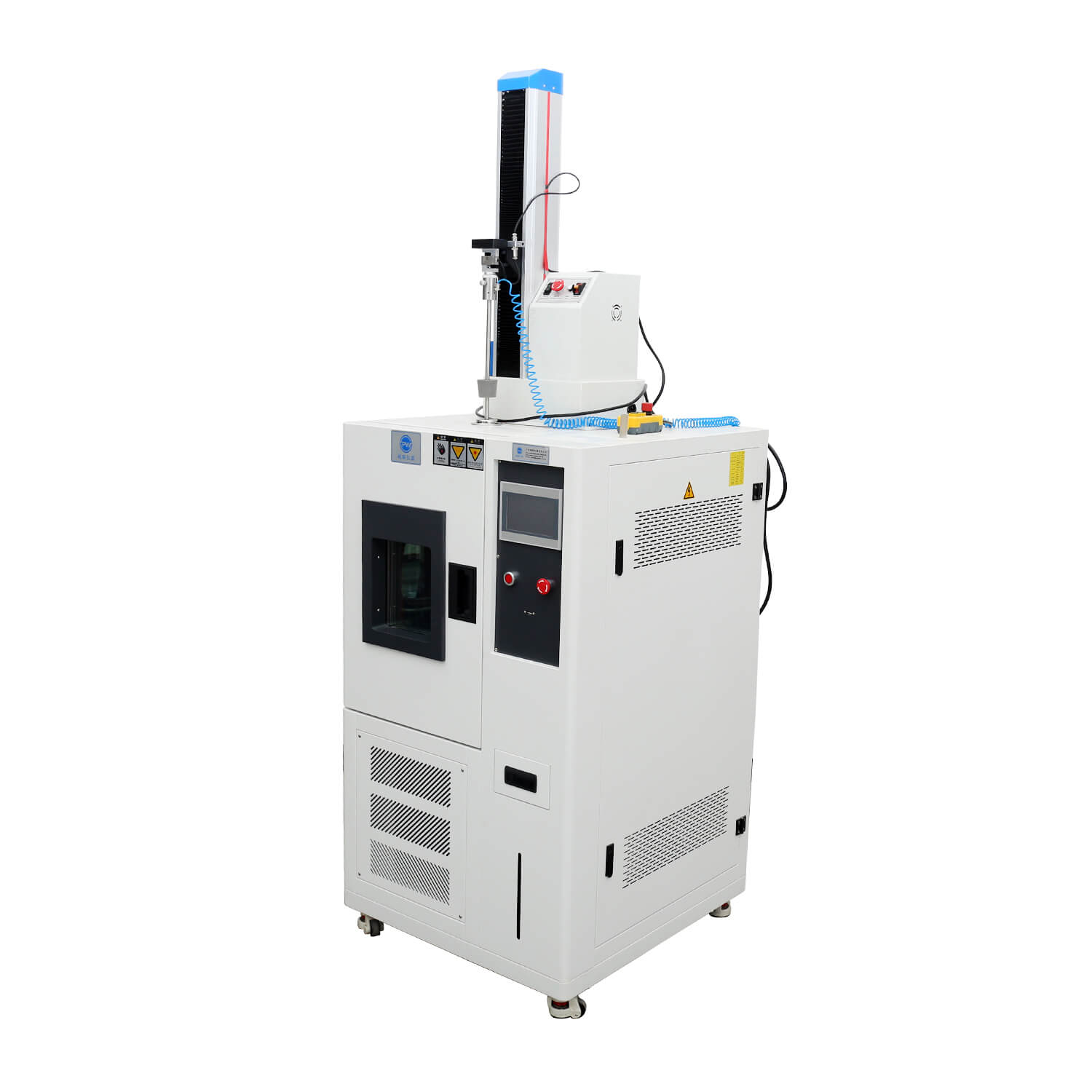

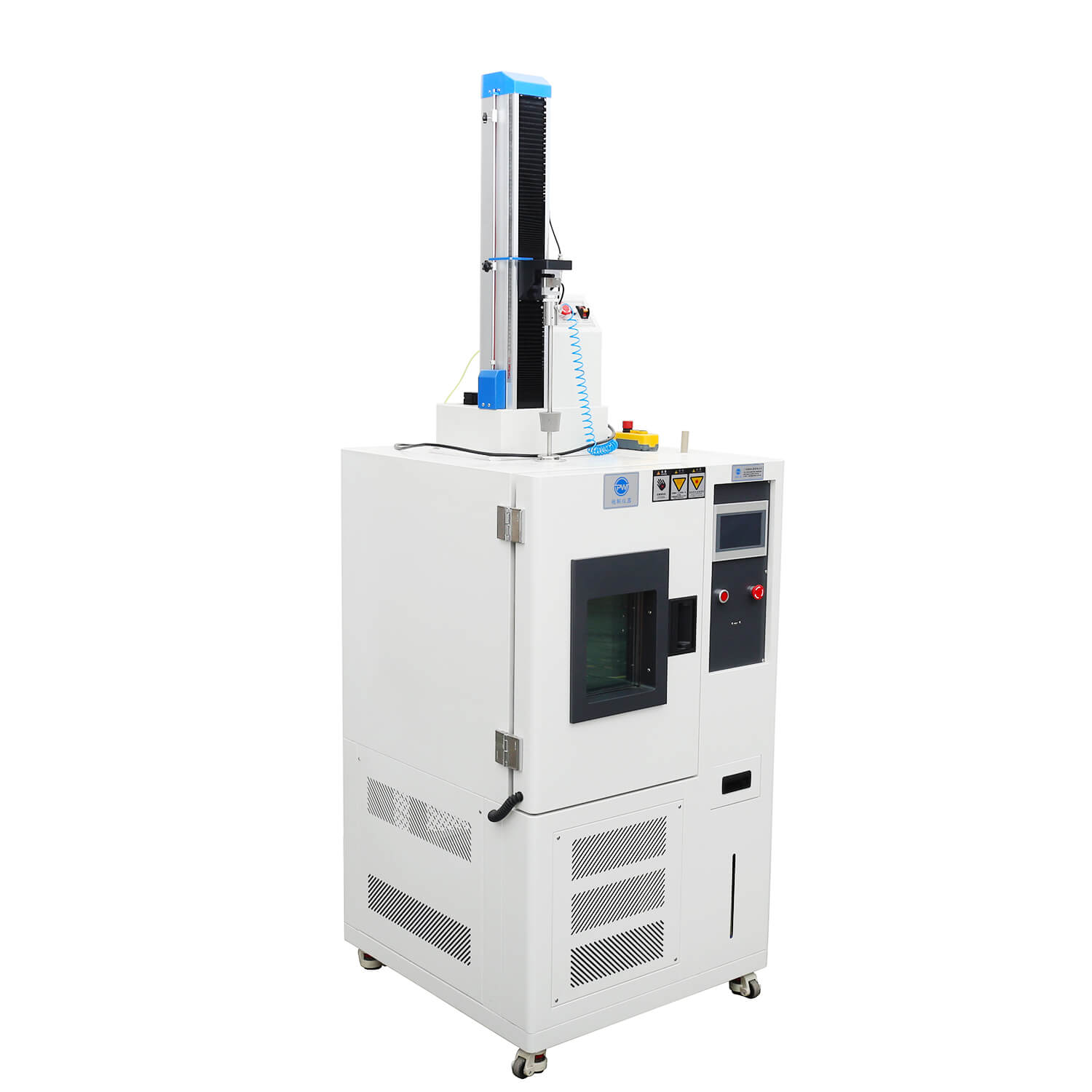

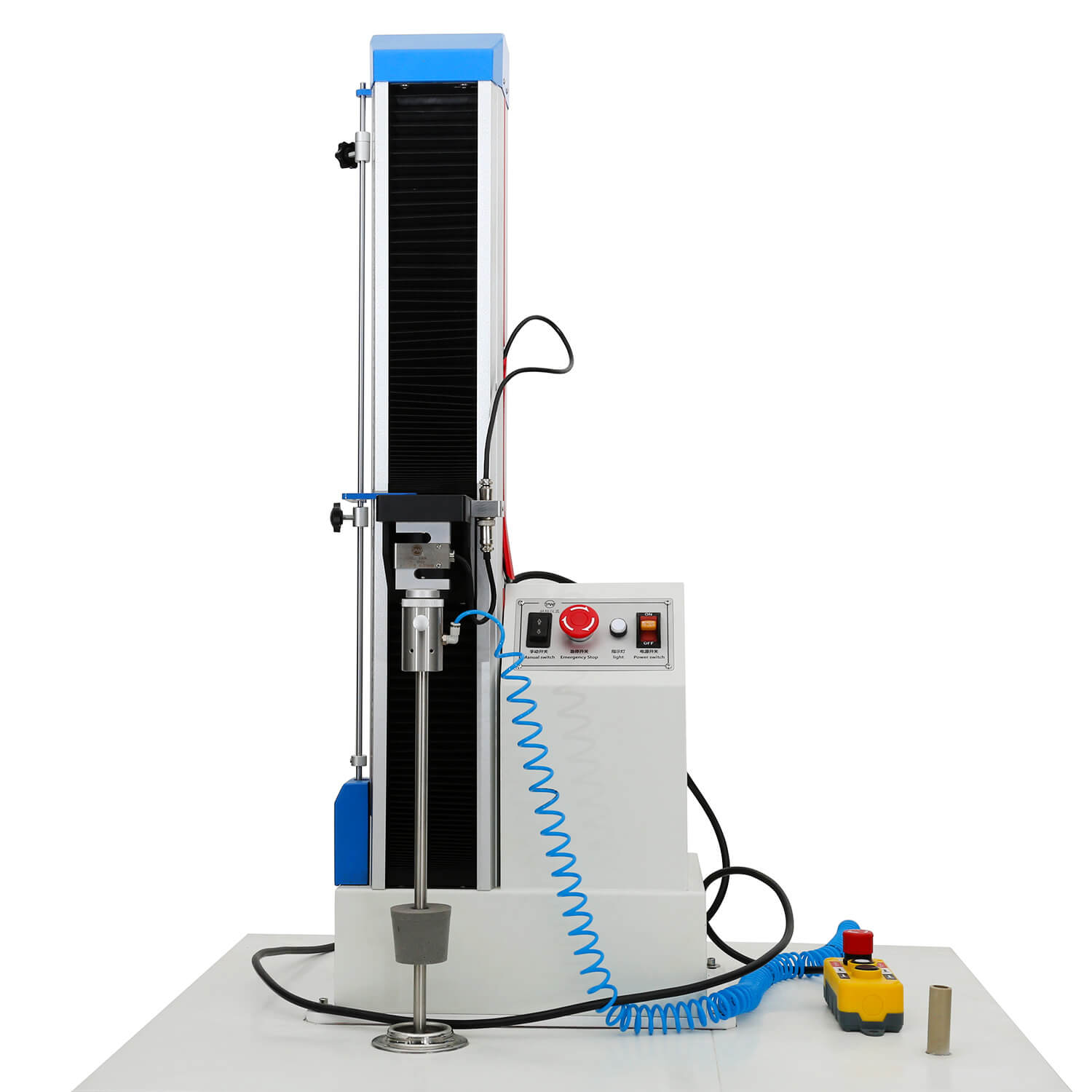

PW-UCS80-40 High & Low Temperature Tensile Tester
- Capacity selection: up to 100KG; (options include 5kg, 10kg, 20kg, 50kg, etc.)
- Equipped with a dust cover, protective casing, and precision ball screw, which can increase the service life and accuracy of the machine.

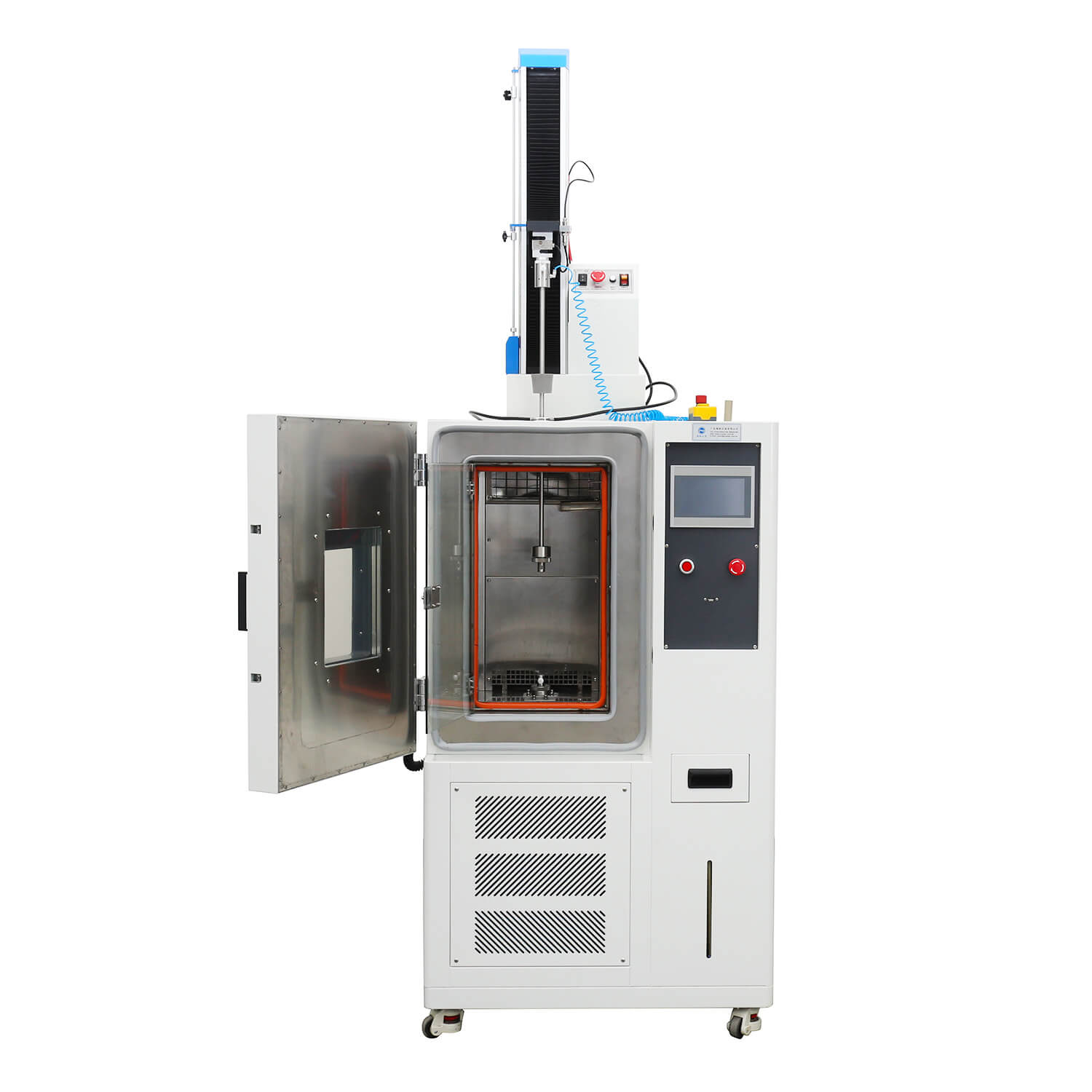

- Convenient to use with the ability to open the chamber door during ambient temperature testing.

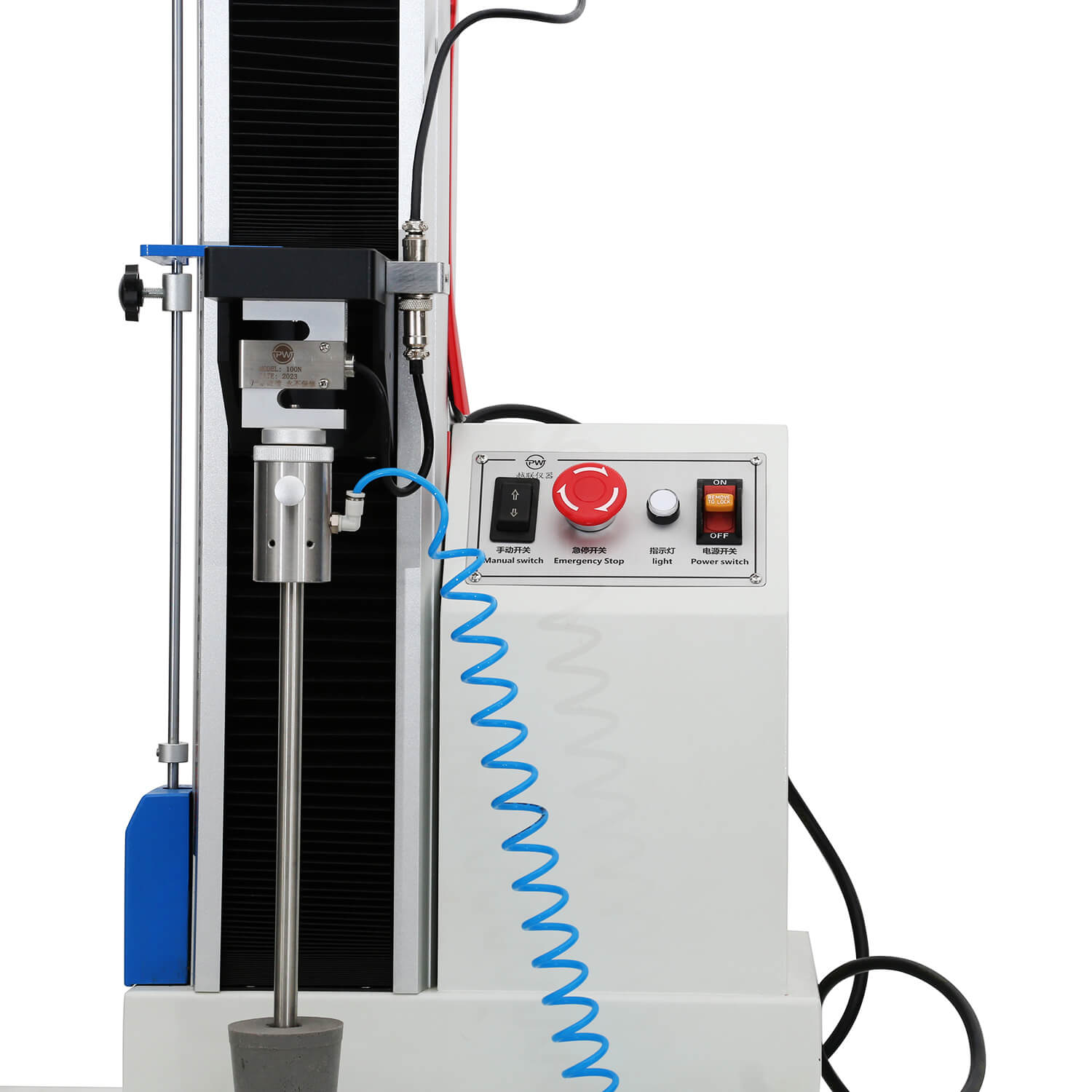

- Hardware safety protection: protected by upper and lower limit switches and an emergency stop button.
- Machine dimensions: approximately 102*95*260 CM.
Specification:
I. Machine Power:
– Driven by servo motor;
– Transmission method: ball guide screw combined with timing belt to reduce noise;
– Speed range: 0.01 to 500mm/min, can be set by computer.
II. Testing Components:
– Load cell: Complies with ASTM-E4 standards, with a capacity range error within 0.5%, using bridge circuit induction output, capable of performing tension and compression tests.
III. Software Features:
– The measurement and control system is the latest system developed in 2020, also known as the international version. It reflects the latest requirements of global users for testing machines; it has strong functionality and ease of use in aspects such as language translation and automatic translation of test data, unit conversion, standard management, specimen shape management, test personnel management, data processing, and report generation. This system uses Microsoft’s latest development tool, Visual Studio, which is powerful and has a user-friendly interface, and is a development tool for the new generation operating system Windows / Vista;
– It meets the needs of over 90% of regions and populations worldwide, fully supporting the international requirements of testing machine manufacturers and users.
IV. Software Features:
1. Support for Chinese and English languages: The application and data (stored in Access database) can be automatically translated at any time.
2. Supported unit systems:
– Metric system (N, kN, mm, MPa, etc.)
– Imperial system (Lb, kP, Inch, kpsi)
– Old system (g, kg, Ton, cm, kg/cm2, etc.)
3. Supported test standards: ISO, GB, ASTM, DIN, JIS, etc., with the ability to add more; test methods are centrally managed for easy use.
4. Report format: Based on Crystal Reports and VS.Net reports, can be exported as Word, EXCEL, PDF documents, with graphics and text, and can include user LOGO images.
5. Curve functions: Curves can be moved and scaled at will, with important parameter points marked, E-value parallel lines marked, and can be printed separately (high resolution) or exported as image files (BMP or JPEG format); 169 types of theoretical curves.
6. Hierarchical management of users ensures the secure management and convenient use of software and data.
7. Graphical user interface; the interface can be modified to distinguish between different users; the interface display area can be set to show or hide.
8. Support for secondary development capabilities: Parameter calculations use open-source VBS scripting, independent report files are written with Crystal Reports, and system parameters are stored in a database, facilitating secondary development by advanced users.
9. Control process VBS scripting; control parameters are diverse and include user-defined input and output, expanding the uses of the testing machine.
10. The main program integrates initial system setup, standard creation, specimen shape, and field management, facilitating debugging.
V. Hardware Features:
1. Three independent analog input channels with a 24-bit AD converter and programmable gain amplifier.
2. The interface with the computer uses opto-isolated USB2.0, which reduces interference and improves reliability.
3. Force Measurement Unit
– Employs the latest high-speed, high-resolution, high-precision AD converter for continuous acquisition without switching ranges; achieves ±500,000 Subdivided code, superior to the six-range amplification of the range-switching method, reaching an internationally advanced level.
– Force measurement range: 0.5 — 100% FS – Measurement accuracy: 0.5 grade
– Resolution: 1/1,000,000
4. Small Deformation Measurement (Electronic Extensometer)
– The unit uses the latest high-speed, high-resolution, high-precision AD converter for continuous acquisition without switching ranges; achieves ±250,000 Subdivided code, superior to the six-range amplification of the range-switching method, reaching an internationally advanced level.
– Deformation measurement range: 1 — 100% FS – Measurement accuracy: 0.5 grade
– Resolution: 1/1,000,000
5. Software Protection: Over-travel and overload protection.
VI. Accessories:

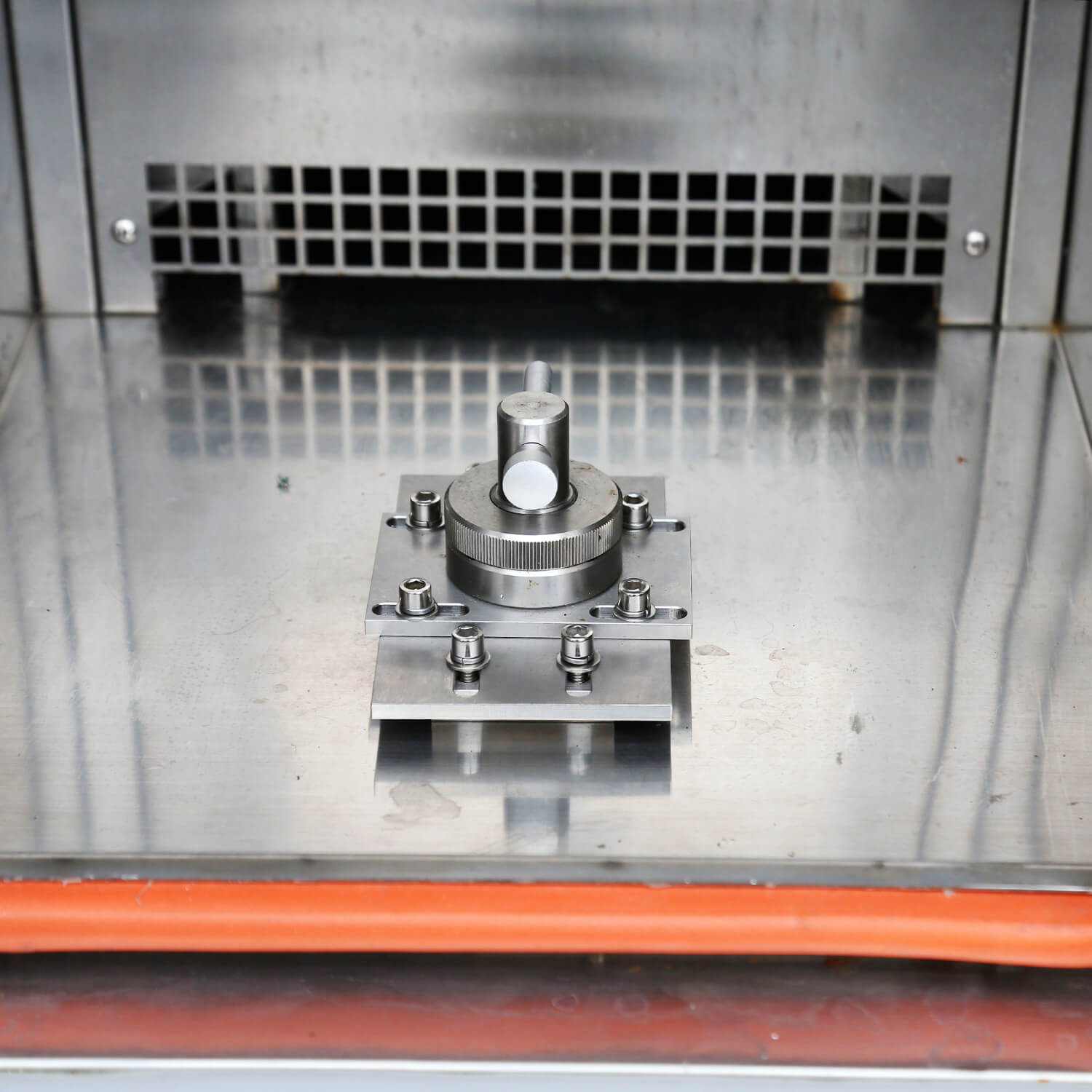

– Included are 90-degree and 180-degree peeling fixtures, one set each; – Included are fixture extension rods, heat dissipation devices, etc.

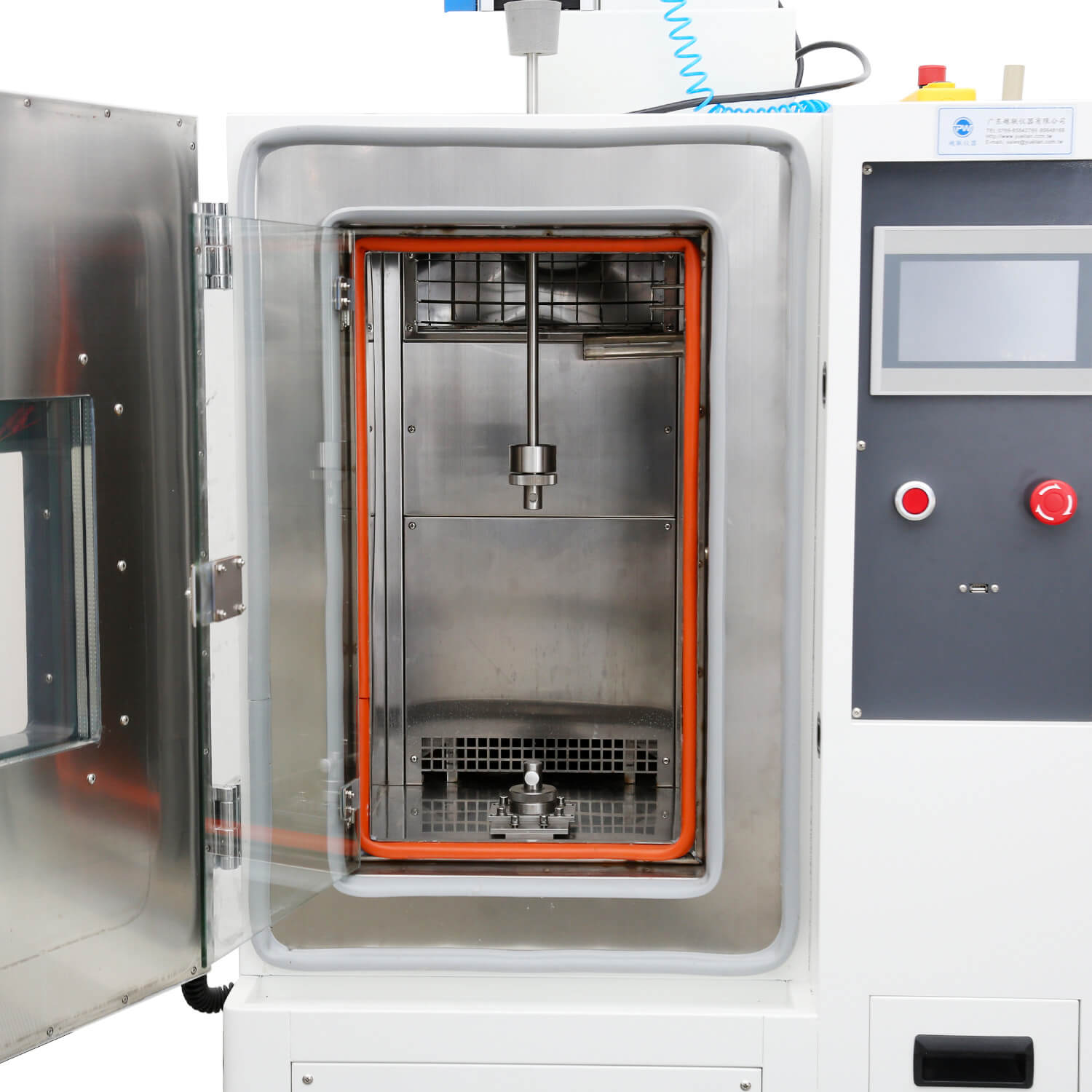

VII. Temperature-Controlled Chamber:
– Internal space: 35*35*62 CM;
– Test temperature range: -40°C to 180°C;
– Humidity range: 20% to 98%;
– Temperature control: Microcomputer PID automatic calculation for stable accuracy;
– Temperature accuracy: ±1°C;
– Circulation system: Fan-assisted forced circulation system;
– Heating system: SUS304 stainless steel radiant heater;
– Cooling system: Fan-assisted with high-efficiency compressor and new environmentally friendly refrigerant;
– Timing device: Includes leakage and overload protectors, compressor over-protector, excessive humidity cut-off protection, and temperature limit protection devices;
– Chamber material: Internally made of SUS#304 stainless steel, externally with high-grade powder coating;
– Single-column design, does not occupy a large area of laboratory space, easy to operate;
– Accessories: 180-degree peeling and 90-degree fixtures, computers, etc., are additional purchases.
VIII. Power Supply
220V, 50/60Hz, 30A
IX. Total Power Consumption
Approximately 8KW
