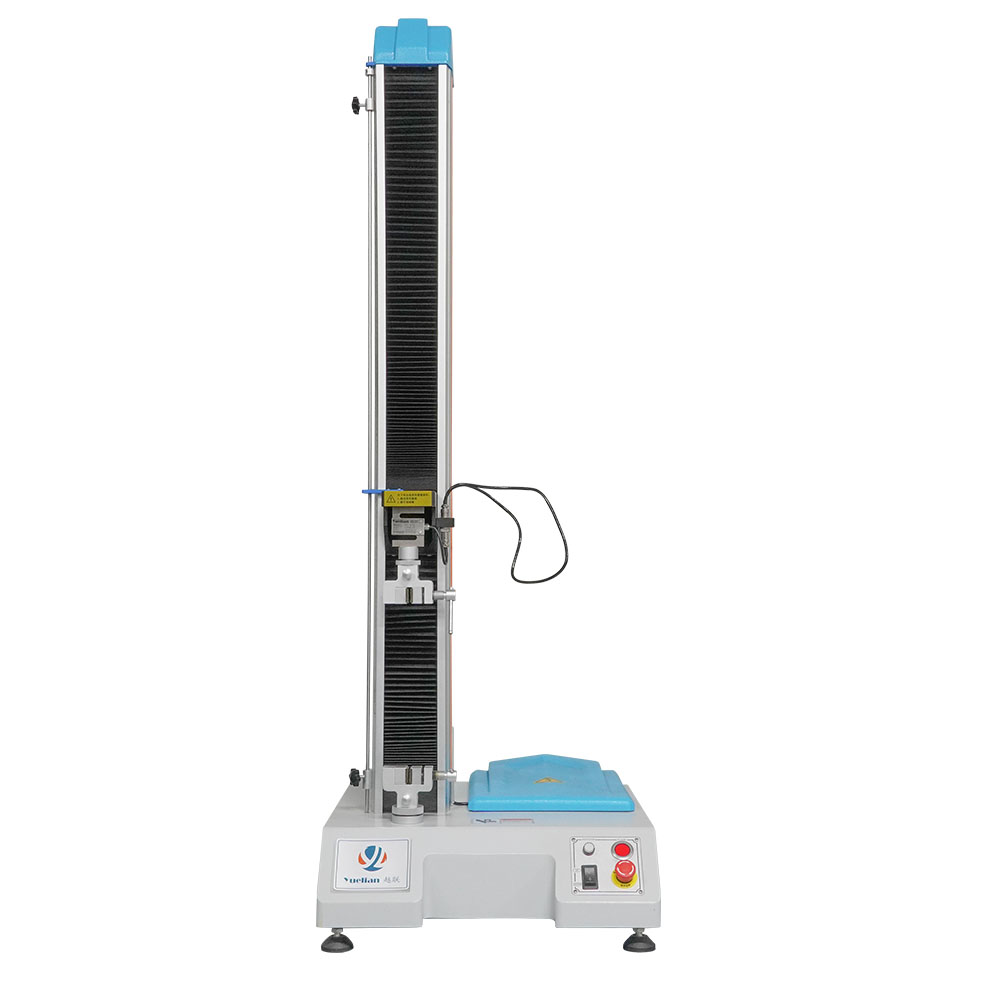

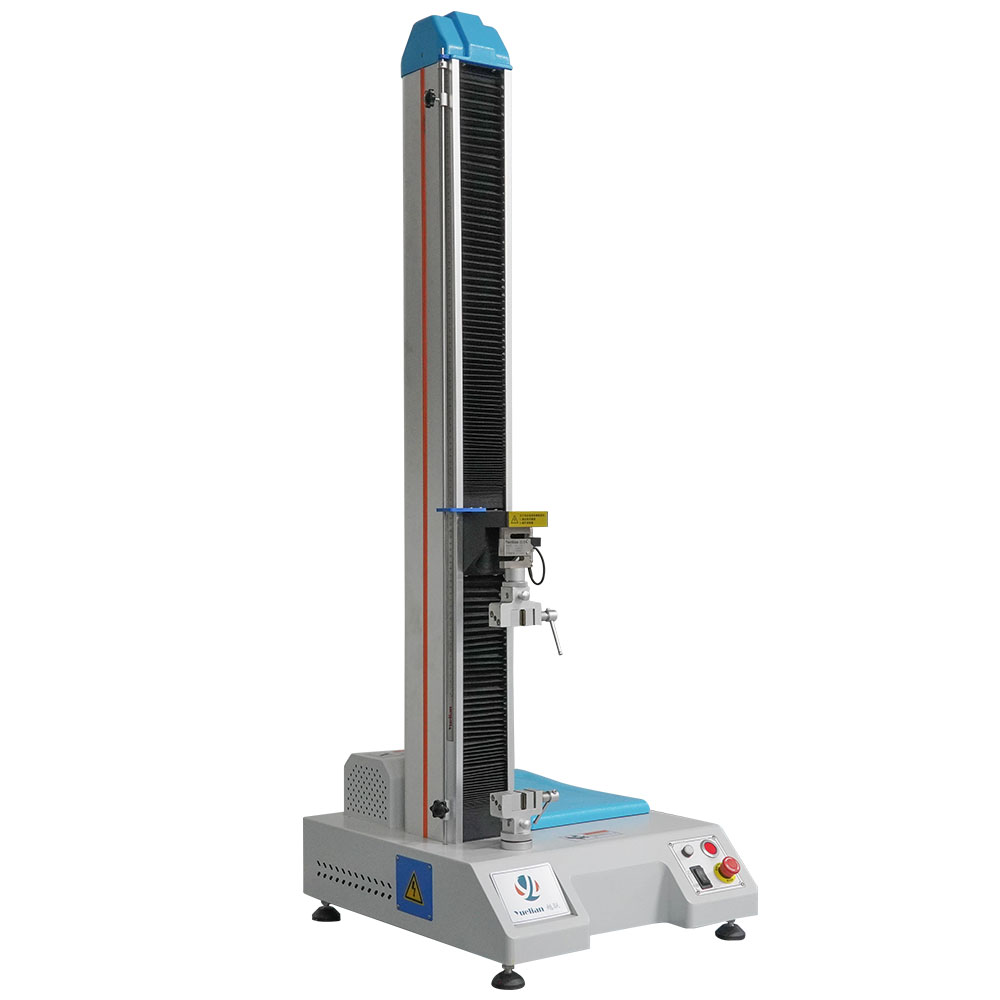

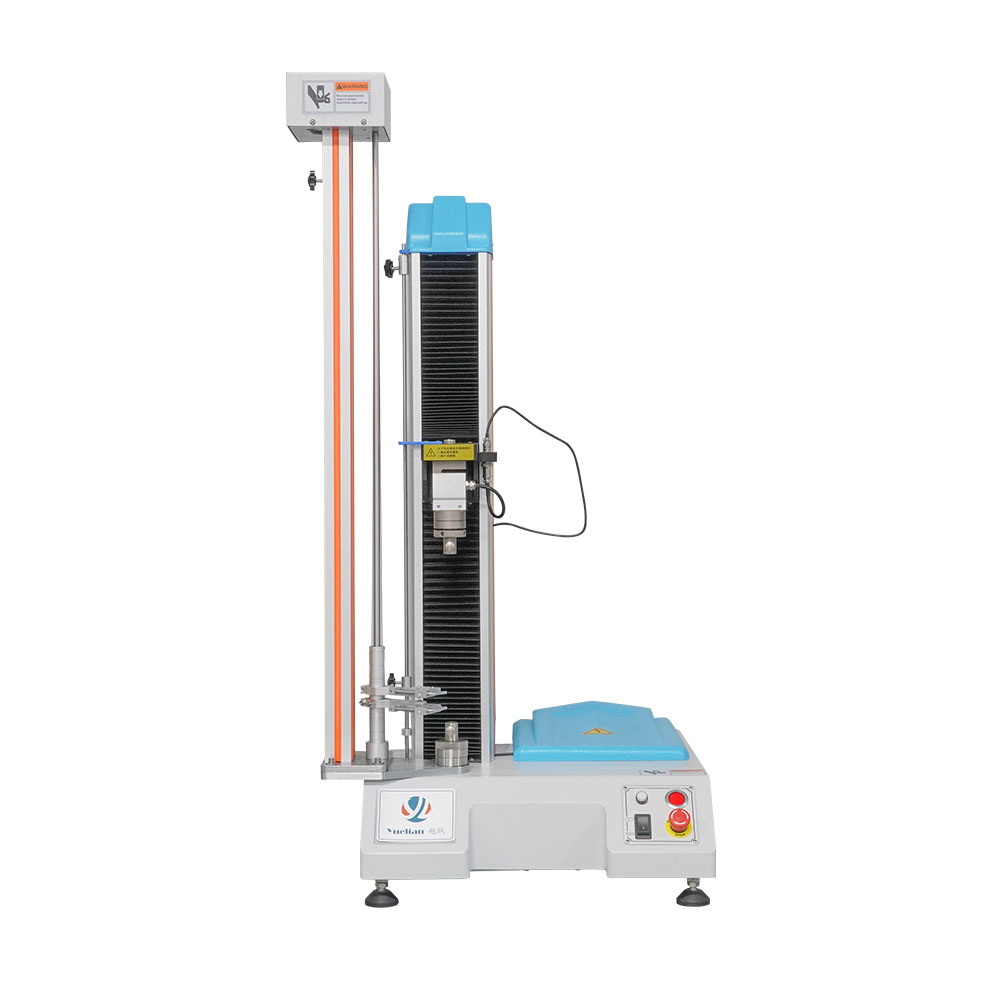

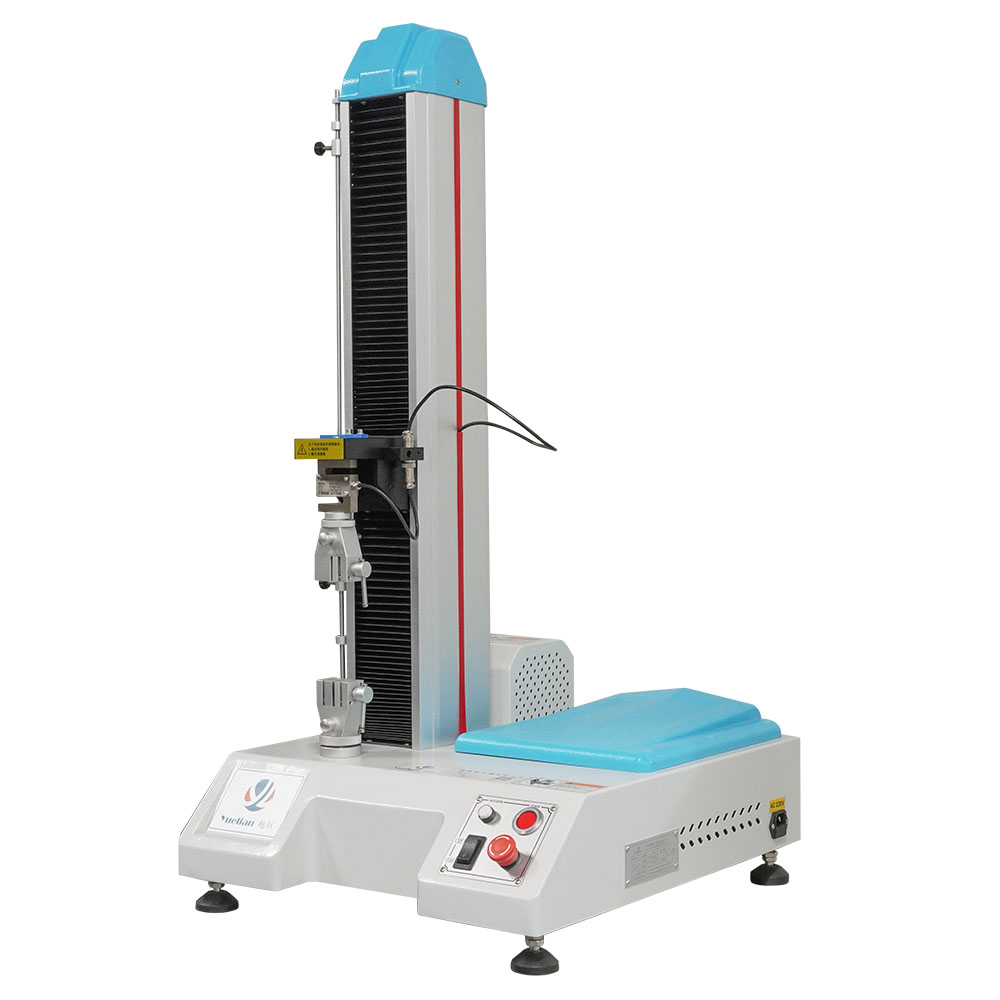

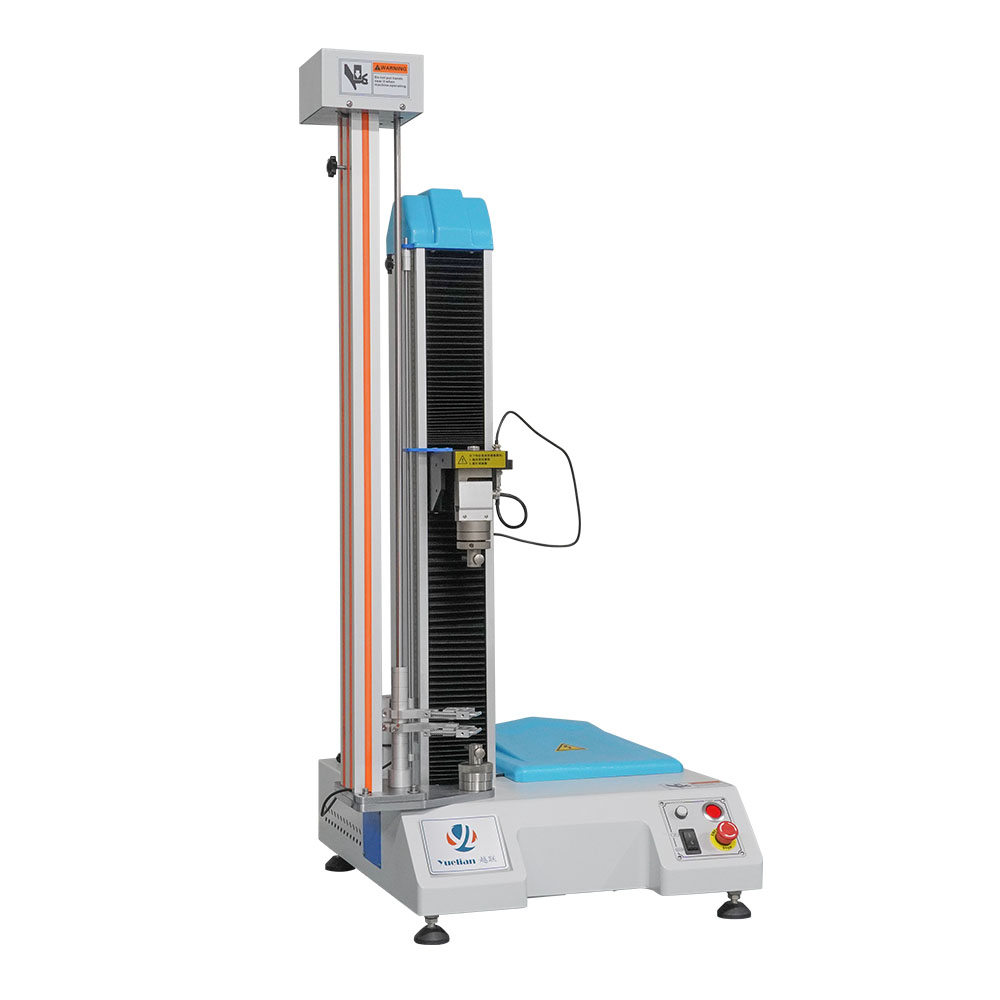

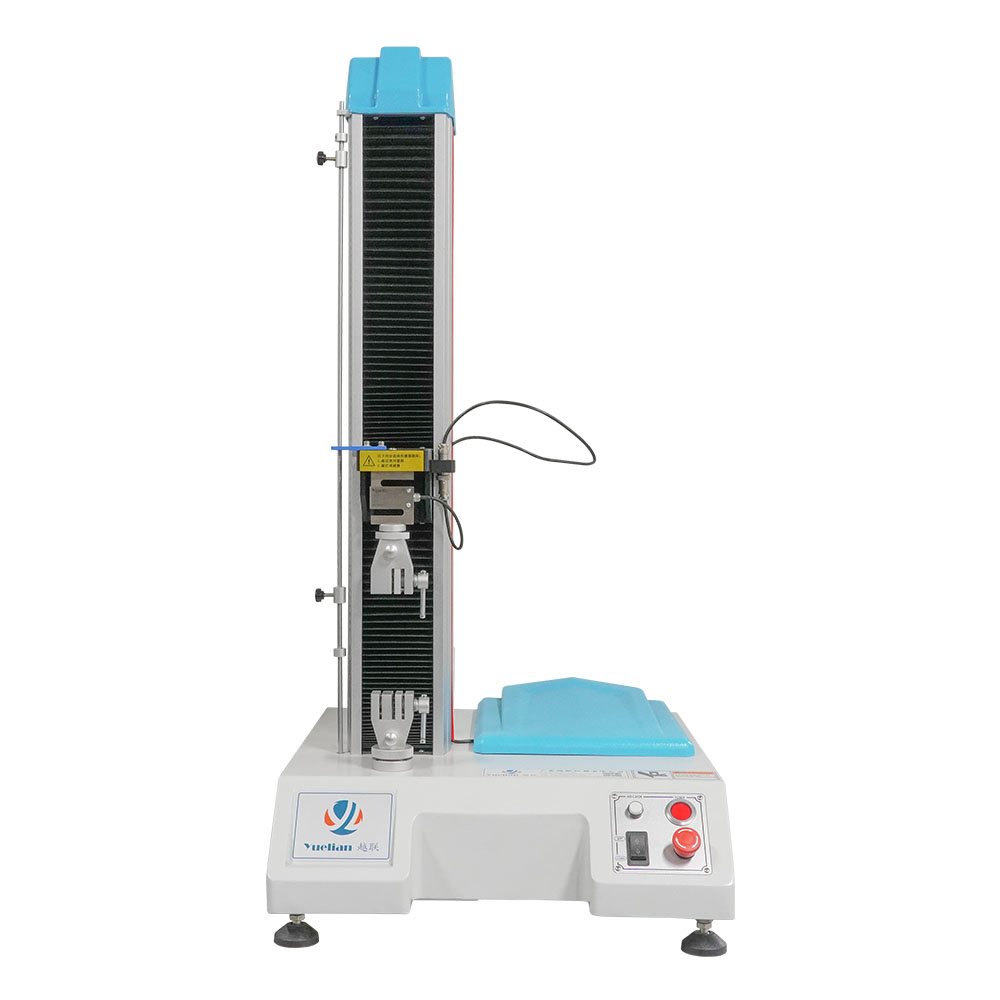

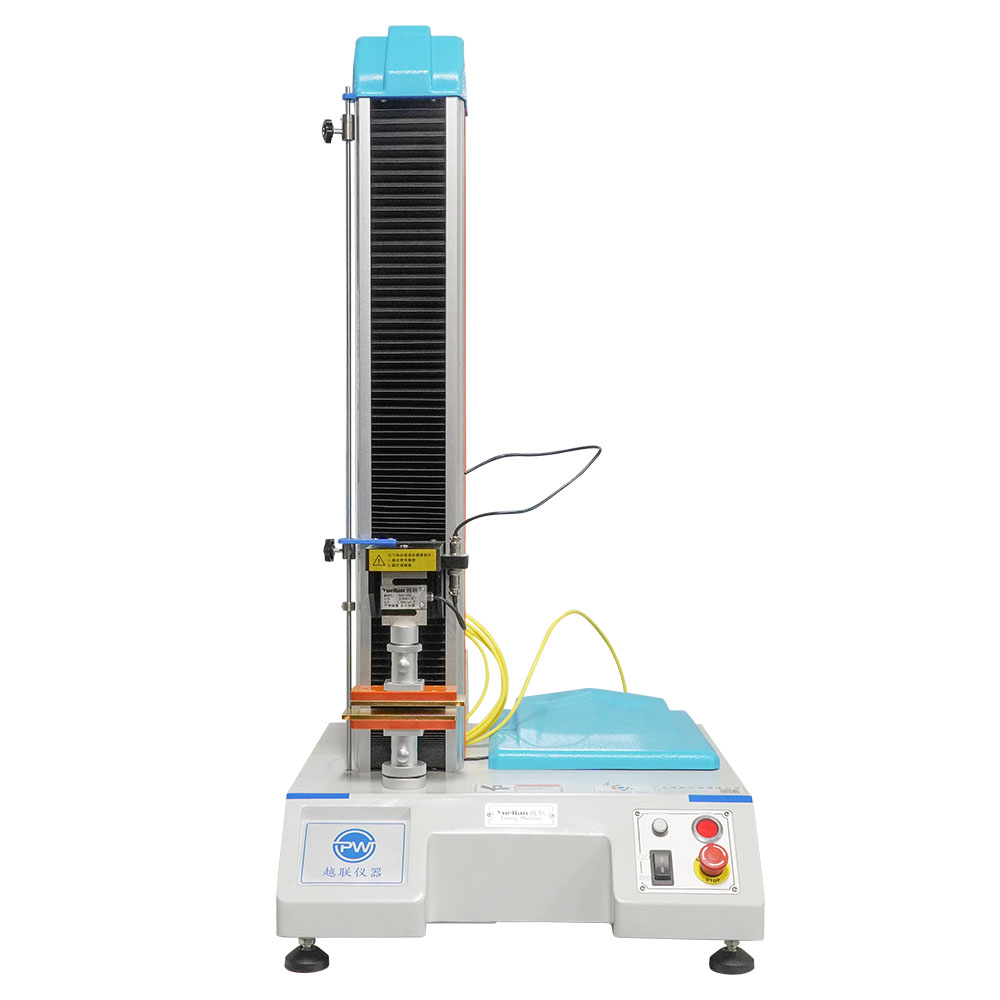

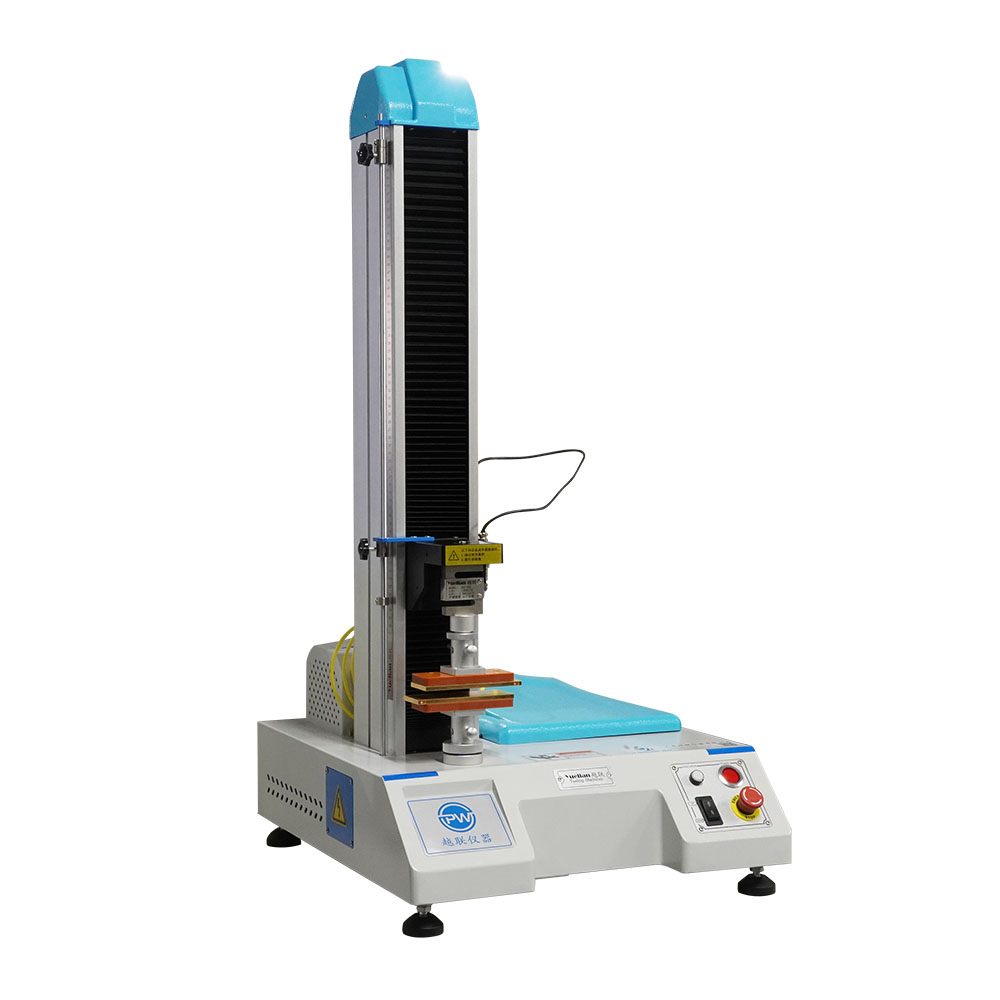

PW-US71 Tensile Testing Machine
Widely used in plastic film, composite materials, flexible packaging materials, plastic hose, adhesive, adhesive tape, self-adhesive, release paper, protective film, combination cover, metal foil, diaphragm, backing material, non-woven fabric, rubber, paper, fiber, wire and other products such as tensile, peeling, deformation, tearing, heat sealing, bonding, puncture force, opening force, low-speed unwind force, dialing force, ring-type initial adhesion and other performance testing.
Features:
1. Wide range of testing functions, can be matched with different fixtures for tensile force, pressure, peel force, tear, shear, release force and other tests.
2. The software function is more powerful, which can realize the functions of positioning shift or fixed force test, interval taking value, etc.
3. The machine design is beautiful and elegant, easy to use and operate, the software is highly expandable and accurate.
4. Servo motor drive, high precision ball screw drive, low failure rate and easy maintenance.
ISO 7500-1 ，JJG475-88 ，ASTM E4 ，DIN5122 ，JIS B7721/B7733 ，EN10002-1 ，EN1002-2 ，BS1610 ， GB /T228 ，GB/T2792 ，ASTM D3330 ，GB/T15598-1995 ，HGT2-163 ，GT/T7753-1987 ，GT/T7754-1987 ， GB/T7124-86 ，GB /T7124-2008.
Main body of the machine
Crossbeam: 45# die steel, ground and electrostatically sprayed;
Base: 2.0mm cold-rolled steel plate after CNC cutting and bending electrostatic spraying treatment;
Dust cover: 2 . 0 mm cold- rolled steel plate after CNC cutting and folding electrostatic spraying treatment.
Transmission section
Adopting servo motor system;
Adopt high-strength chain and precision type ball screw drive of Taiwan Shangyin.

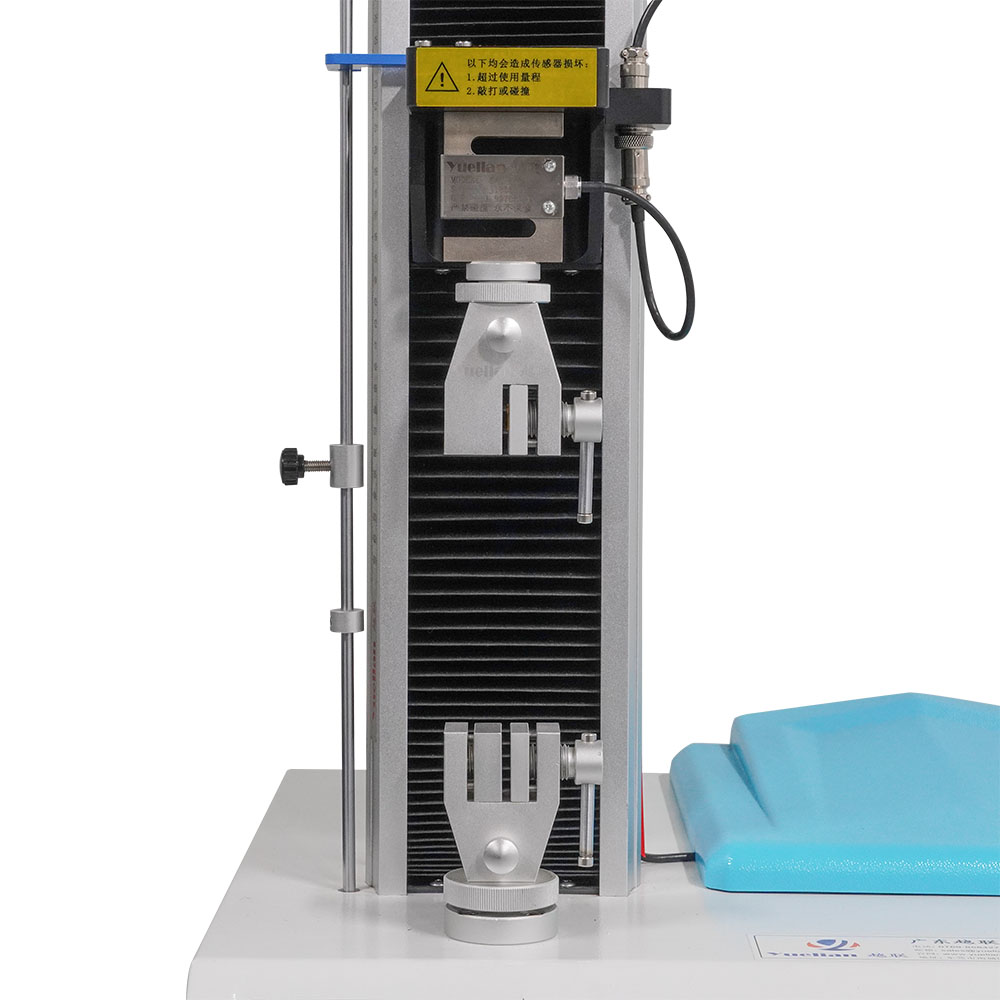

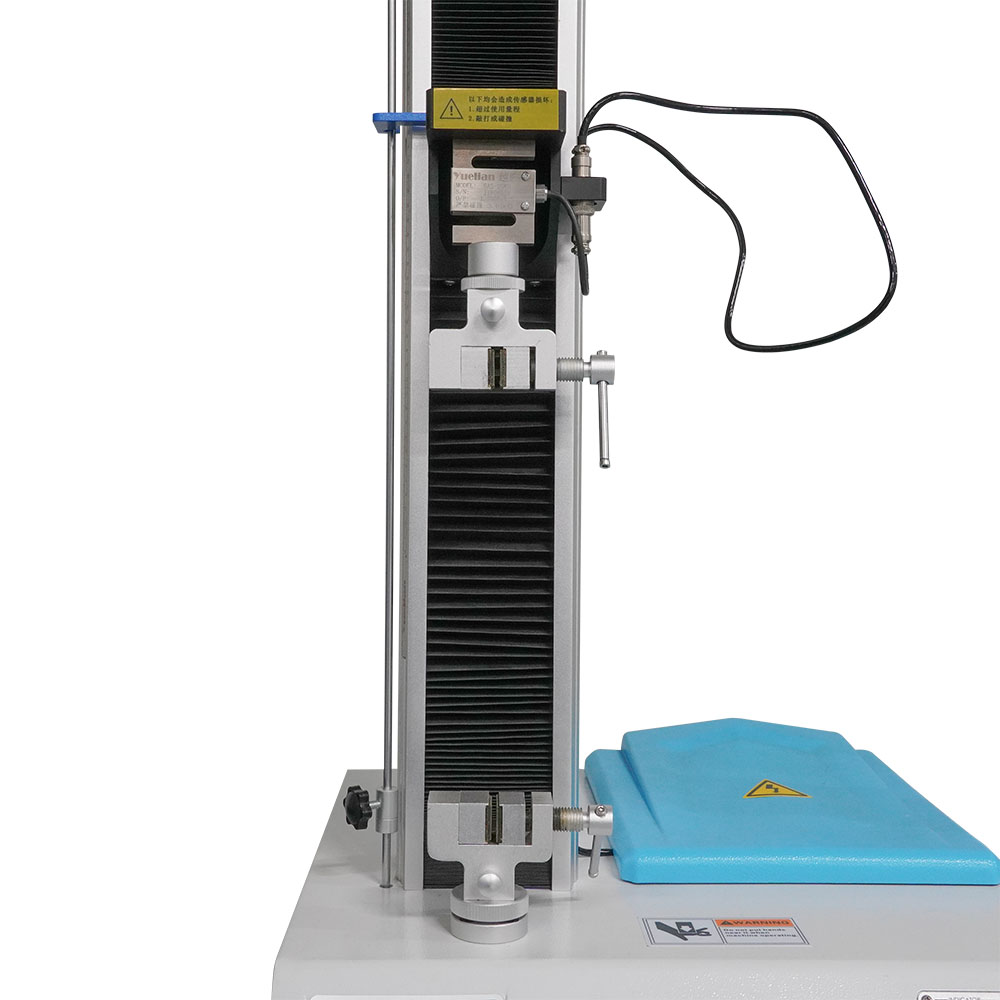

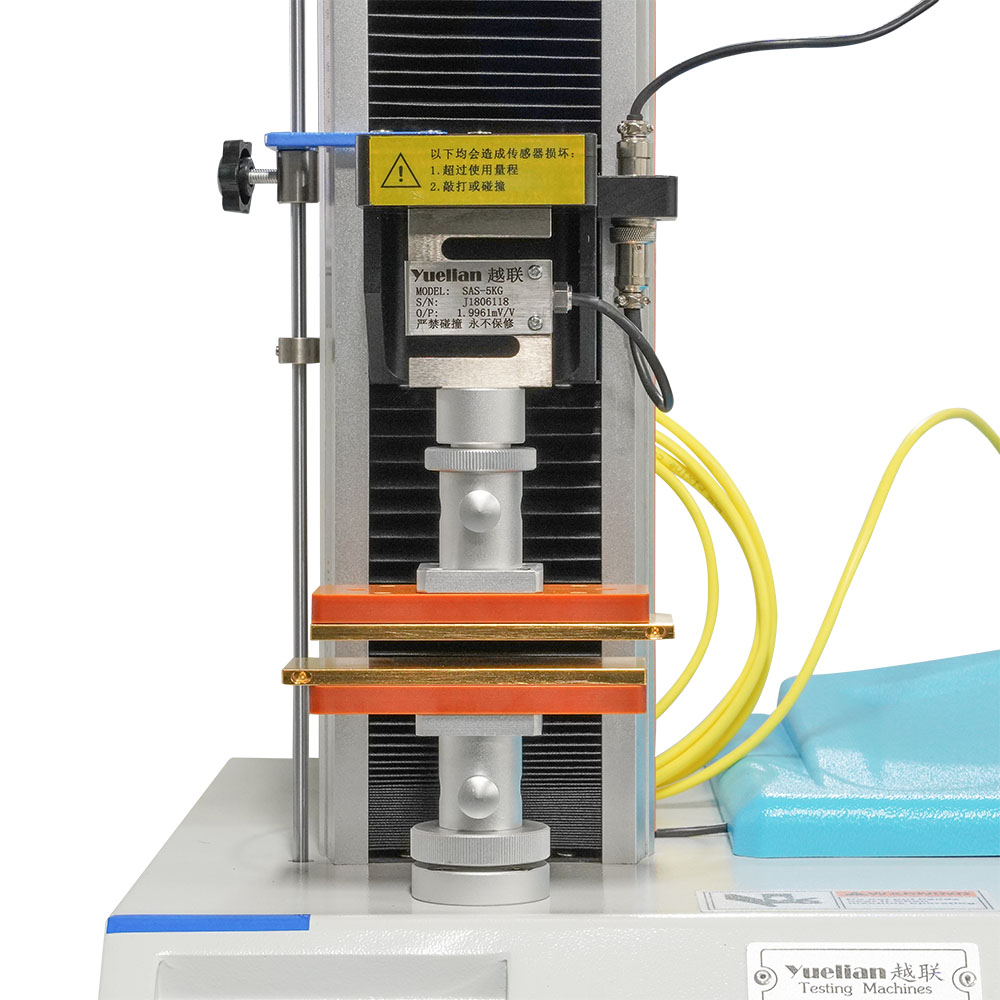

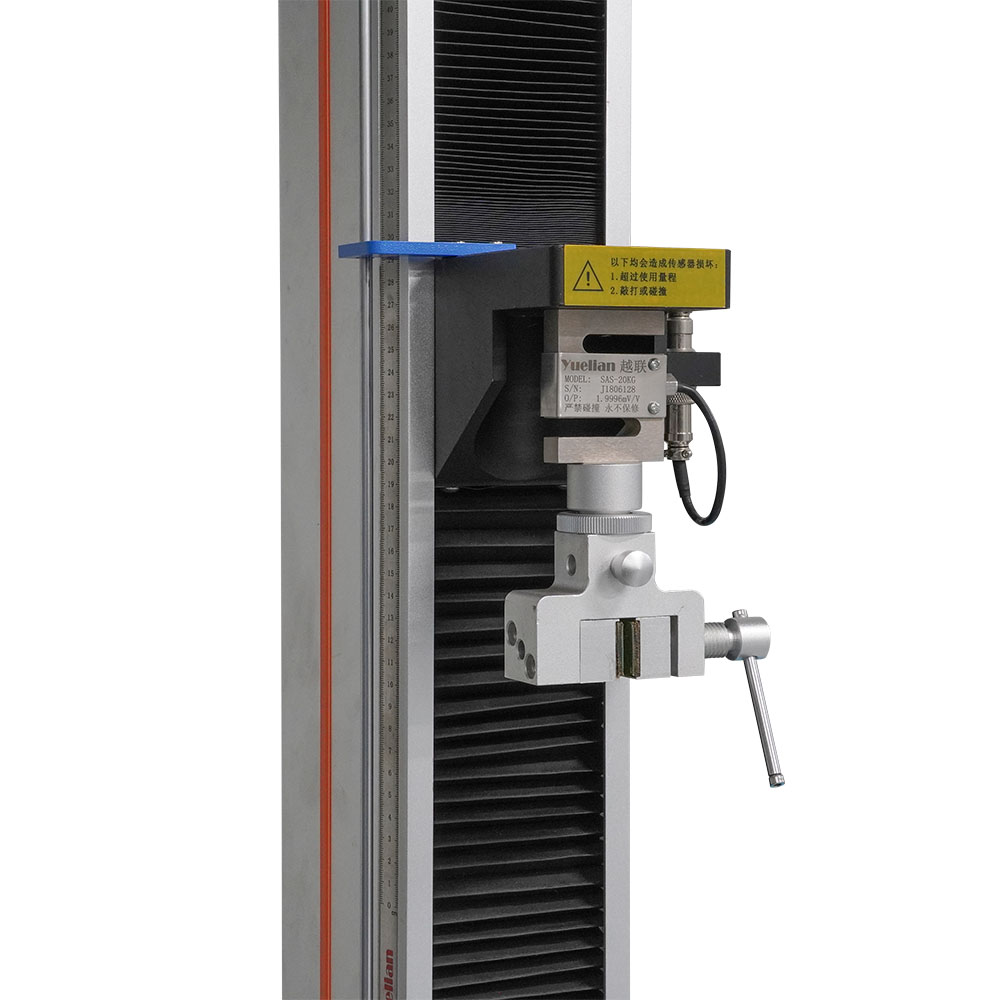

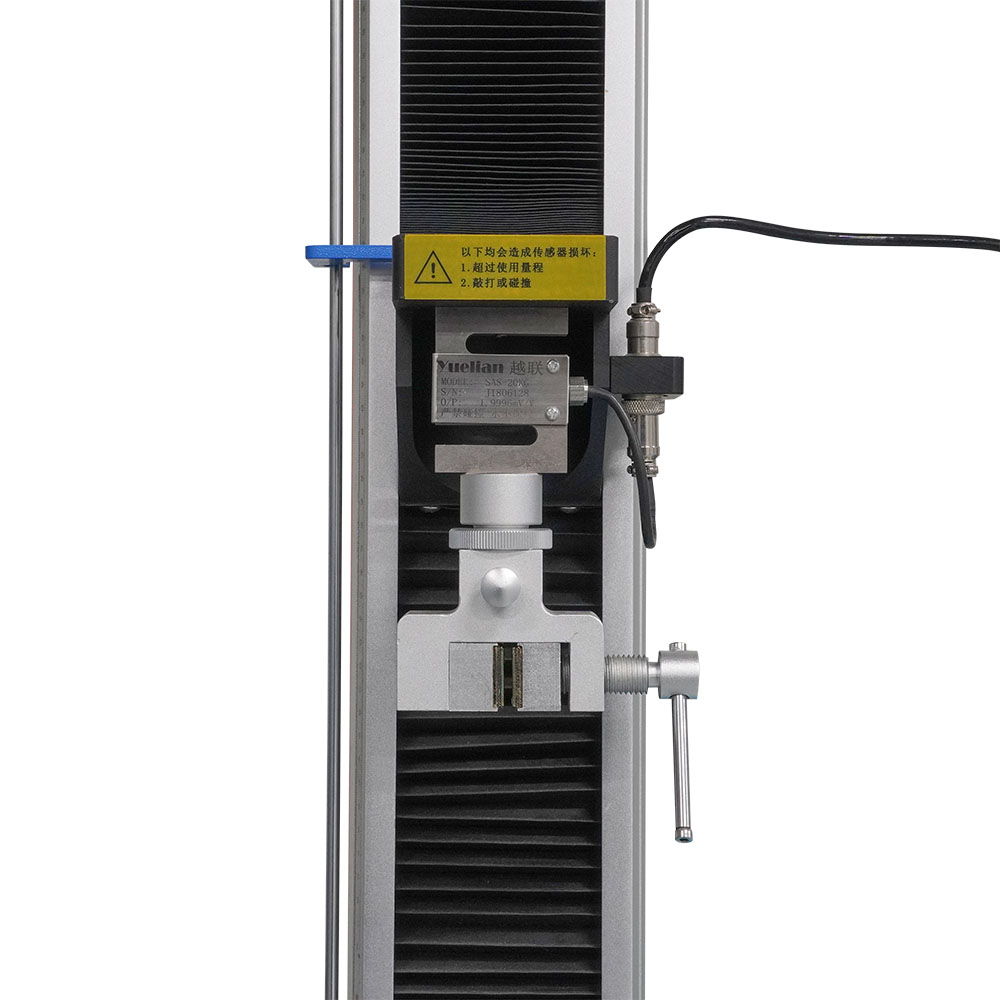

Force measurement systems
Adopt the latest high-speed, high-resolution, high-precision AD converter without splitting continuous acquisition; reach ± 5 0 0 0 0 0 subdivision code, better than the six amplification of the splitting method, reaching the international advanced level.
Force measurement range: 0.5-100% FS Measurement accuracy: 0.5 grade Resolution :1/500,000 with precision pull-pressure type sensors to meet high stability and high precision force value acquisition.
Displacement measurement system
The unit adopts the latest high-speed, high-resolution and high-precision AD converter with no sub-grade continuous acquisition; it reaches ±250,000
subdivision code, which is better than the six-grade amplification of the sub-grade method and reaches the international advanced level.
Deformation measurement range: 1 — 100% FS Measurement accuracy: 0.5 grade
Resolution:1/500,000
The servo motor with high linearity photoelectric encoder output displacement signal, with fast transmission speed, high precision characteristics.
Software Features
It can do pulling, pressing, bending, shearing, tearing, peeling and other tests for various materials.
Software functional features:
1. Tensile, compression, bending, shear, tear and peel tests can be performed;
2. Maximum force, yield force, average peel force, maximum deformation, yield point, elastic modulus and other parameters can be calculated;
3. Automatic return: select the automatic return function, after the test
fracture, the beam will automatically return to the initial position at high speed.
4. Curve processing, multi-sensor support, graphic image interface, flexible data processing, support for Windows XP/Win7 Win10 operating system;
5. Easy to connect with office software such as office; test results can be accessed arbitrarily, and the data curve can be re-analyzed.
6. Result comparison: multiple test characteristic curves can be iterated, reproduced, enlarged and presented in different colors for analysis and comparison of a group of specimens.
7. Test report: the report can be printed directly, or exported to PDF, Word, Excel and other formats;
8. Support simplified Chinese, traditional Chinese, English switch at will, the test data database field display name follows the selected text automatically translated, so that the data in the local text under the convenient browsing, basically meet the use of testing machines in the world;
9. Support 3 types: SI international standard units, kg-cm units, Lb-Inch imperial units, 6 common unit system: N-mm-MPa, kN-mm-MPa, gf-cm-kgf/cm2, kgf-cm-kgf/cm2, Lb-Inch-kpsi, kP-Inch-kpsi, unit switching is convenient and can meet the different regional standards.
10. Test mode structure output:
Tensile: maximum force, tensile strength, yield strength, elongation after break, modulus of elasticity, etc.
Bending: maximum force, bending strength, deflection, modulus of elasticity, etc.
Compression: maximum force, compression strength, yield strength, modulus of elasticity, etc.
Tearing: maximum force, tear strength, etc.
Peel: maximum peel force, average peel force, minimum peel force, maximum peel strength, average peel strength, minimum peel strength, etc;
11. Supporting the original data viewing function, providing original data files for material testing and analysis;
12. The use of photoelectric communication interface, a complete solution to cause damage to the computer serial port or circuit board serial port caused by not common ground, the realization of the computer and the test machine circuit hot-swapping;
13. Software using authority hierarchical management: tester level authority, test management authority, tester manufacturer authority, taking into account the convenience and security of use.
