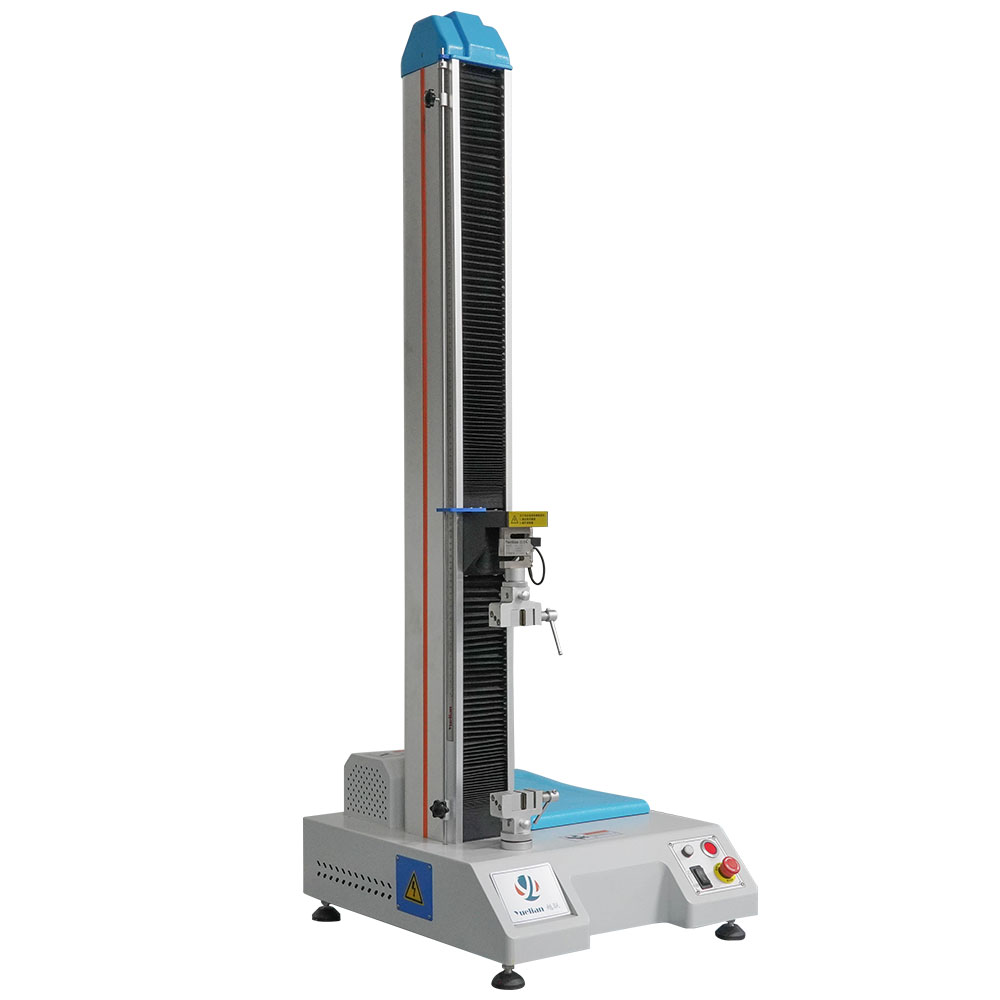

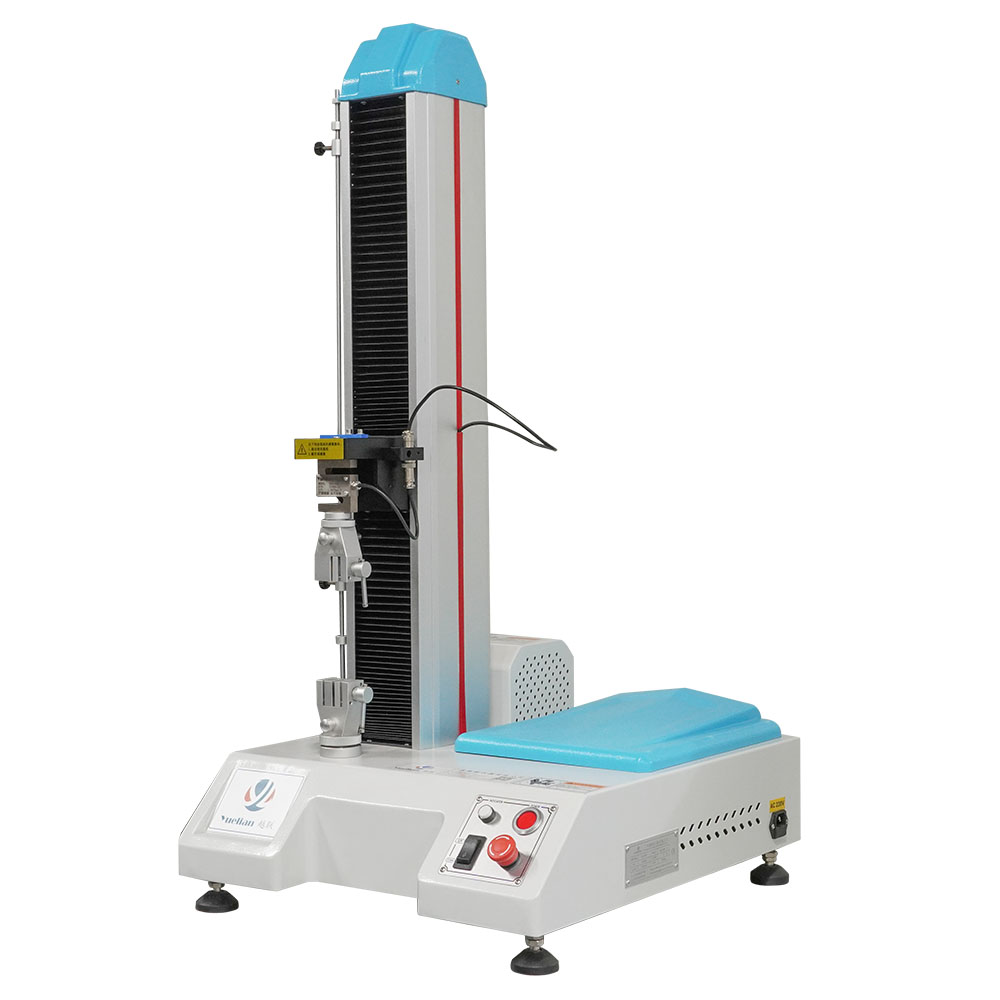

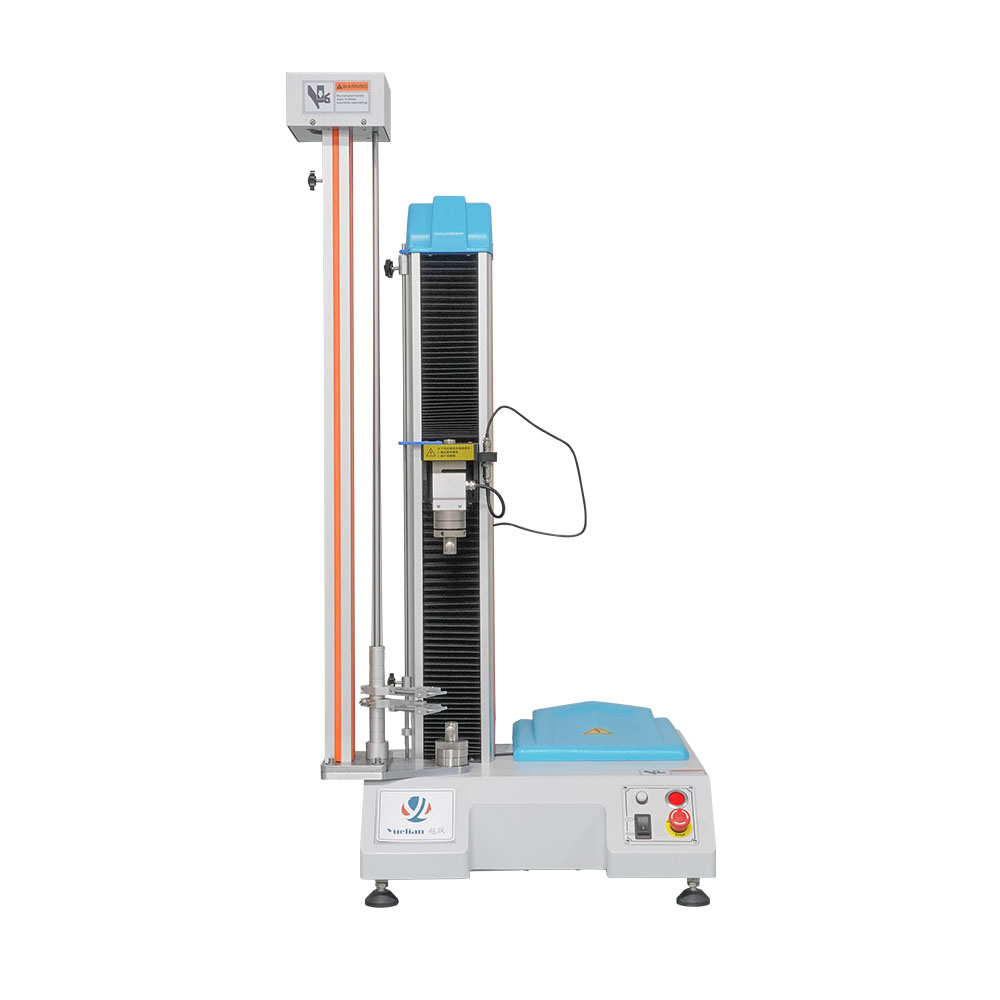

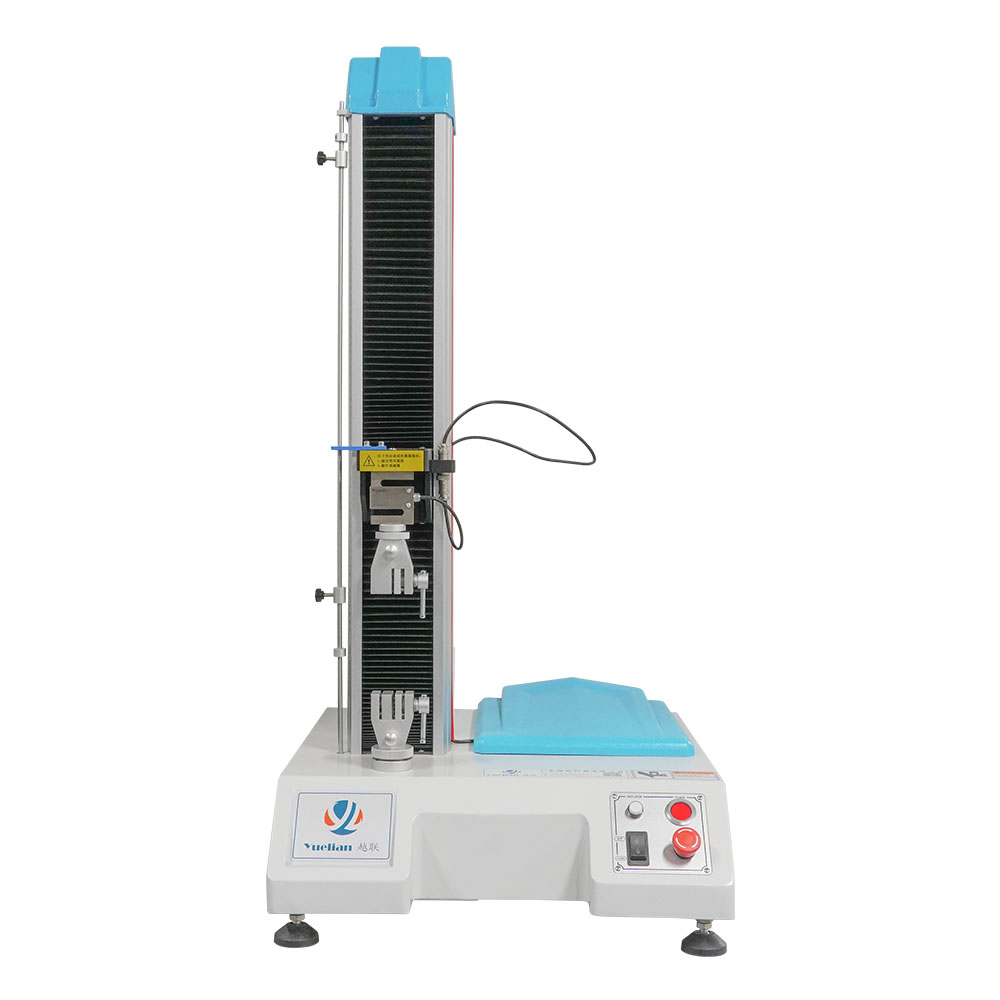

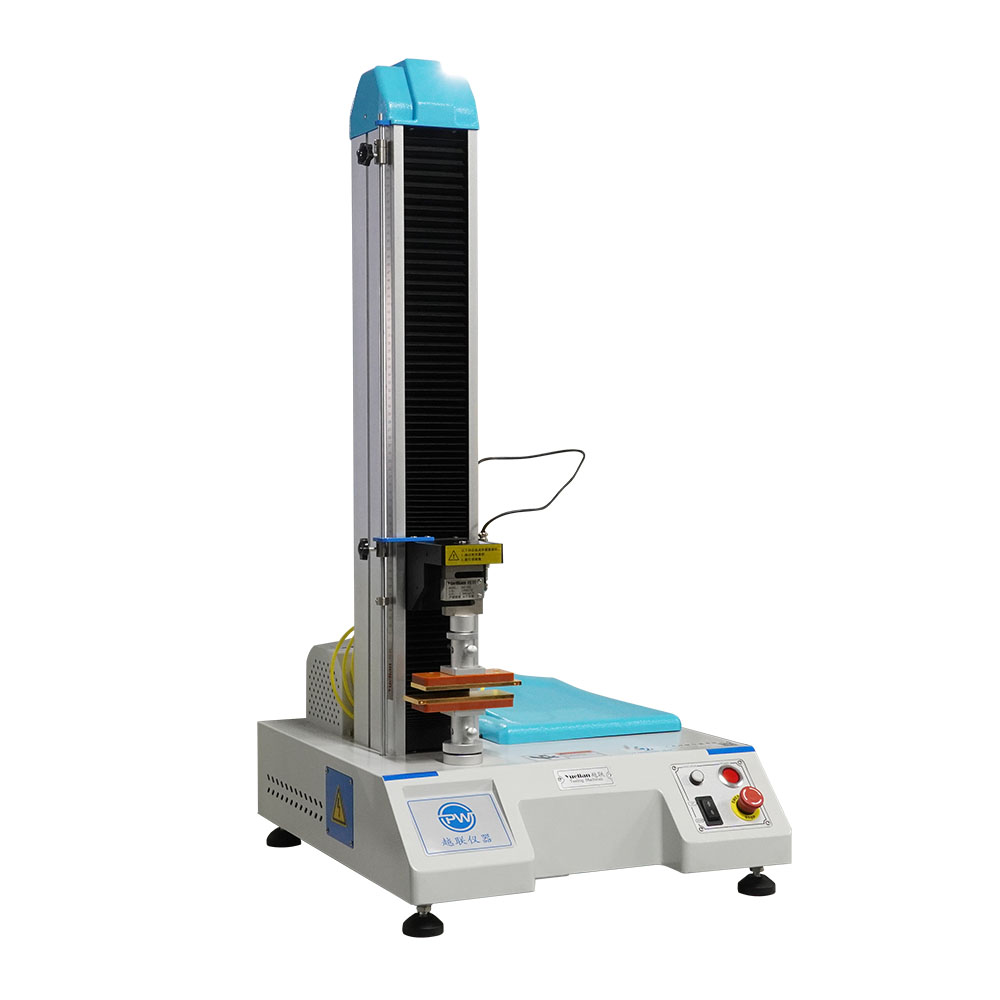

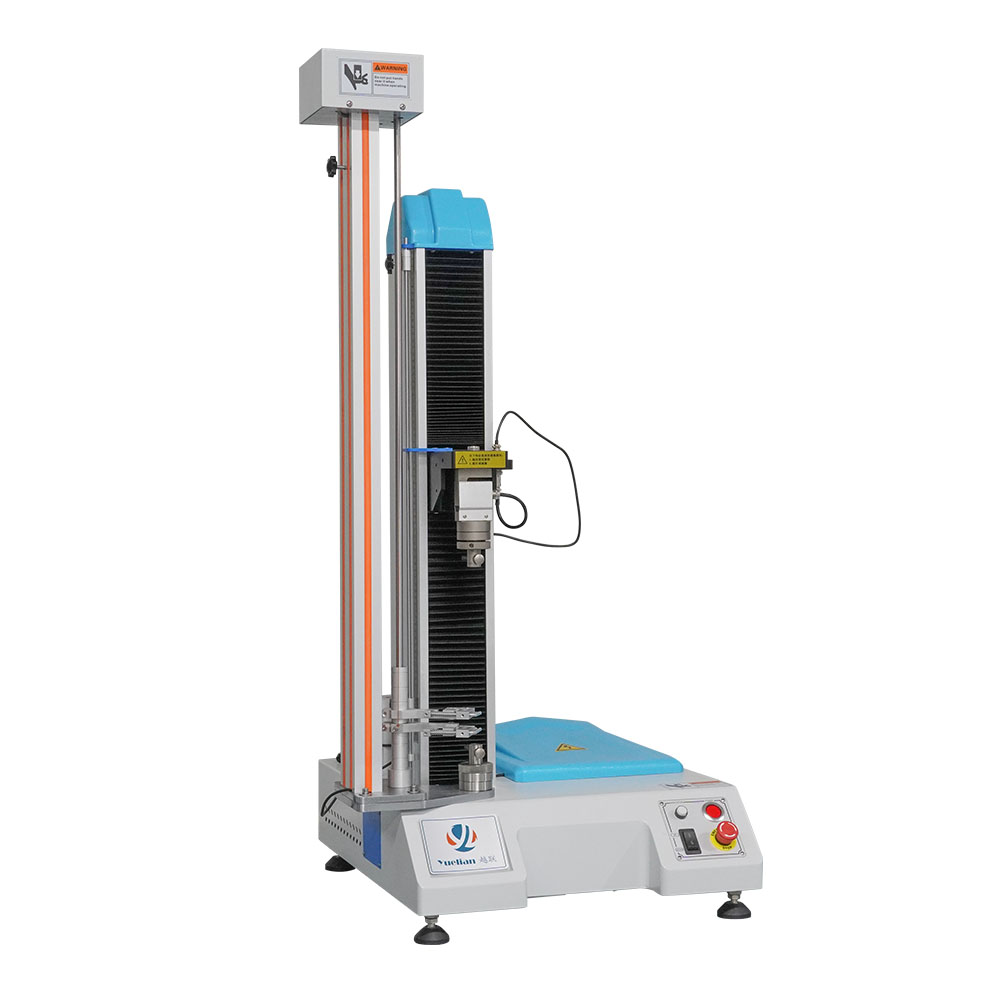

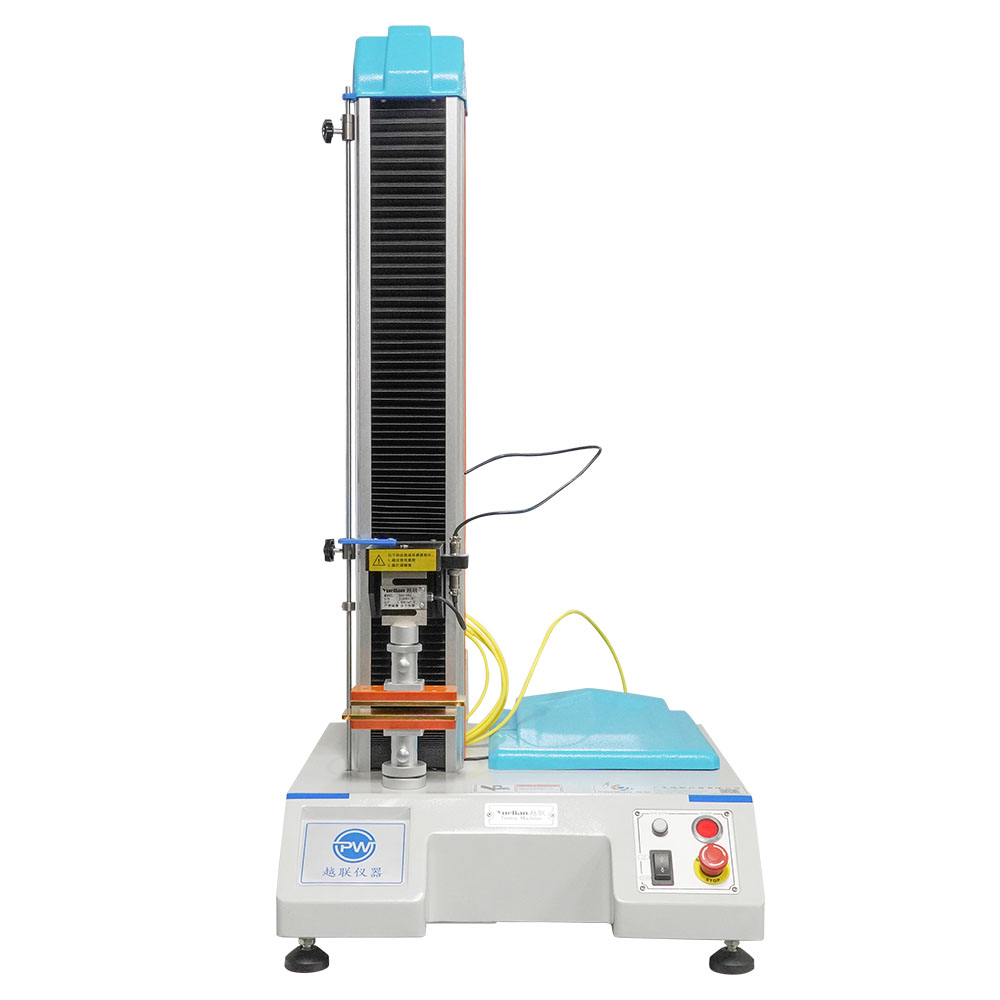

PW-US73 Tensile Testing Machine
Widely used in applications such as plastic film, composite materials, soft packaging, plastic hoses, adhesives, adhesive tapes, self-adhesive products, release papers, protective films, combination covers, metal foils, diaphragms, backing materials, non-woven fabrics, rubber, paper, fibers, wires, and other products. These materials undergo performance tests, including tensile strength, peeling resistance, deformation, tearing resistance, heat sealing, adhesion, puncture force, opening force, low-speed unwinding force, toggle force, ring-type initial adhesion, and more.
Features:
1. The testing equipment offers a diverse range of functions, including tensile, pressure, peeling force, tearing, shear, and release force tests, with the flexibility to accommodate various fixtures.
2. The software is equipped with advanced features, enabling precise positioning, shift or fixed force testing, and interval value adjustments, among other functions.
3. The machine design is aesthetically pleasing and user-friendly, with intuitive operation. The software is highly expandable and ensures high accuracy in test results.
4. The equipment utilizes servo motor drive and a high-precision ball screw drive system, resulting in a low failure rate and simplified maintenance procedures.
Specification:
Standards
ISO 7500-1, JJG475-88, ASTM E4, DIN5122, JIS B7721/B7733, EN10002-1, EN1002-2, BS1610, GB/T228, GB/T2792, ASTM D3330, GB/T15598-1995, HGT2-163, GT/T7753-1987, GT/T7754-1987, GB/T7124-86, GB/T7124-2008.
Machine Structure And Hardware Parts
Main Body: 45# mould steel, ground and electrostatically sprayed.
Base: 2.0mm cold-rolled steel plate CNC sheared and electrostatically sprayed.
Dust Cover: 2.0mm cold-rolled steel plate CNC sheared and electrostatically sprayed.
Transmission Part: Adopts servo motor system; uses high-strength chain and Taiwan precision ball screw drive.
Force Measuring System: Uses the latest high-speed, high-resolution, high-precision continuous acquisition AD converter without staging; ±500,000 subdivision code, superior to the six-amplification staging method, achieving international advanced level.
Force measurement range: 0.5–100% FS
Measurement accuracy: 0.5 grade
Resolution: 1/1,000,000

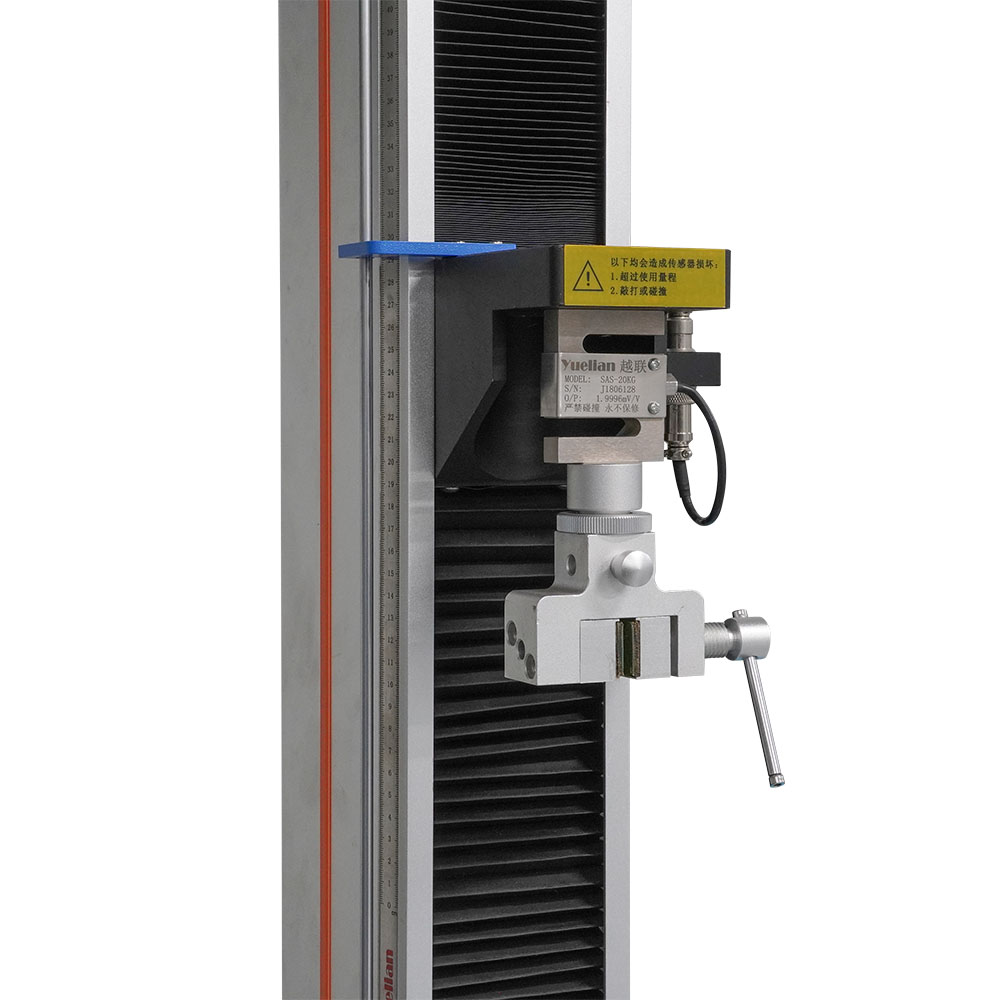

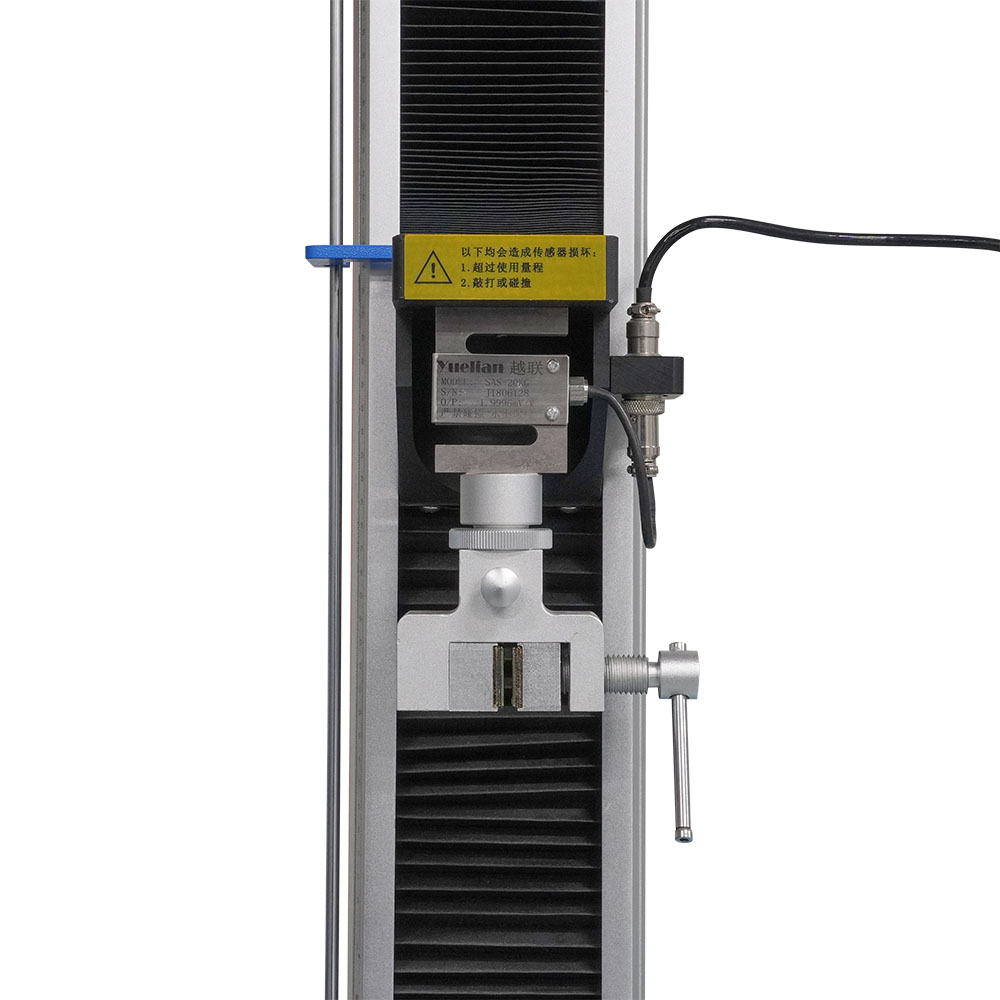

Equipped with precision sensors to ensure high stability and accuracy in force value acquisition.
Displacement Measuring System: Adopts latest high-speed, high-resolution, high-precision continuous acquisition AD converter without gearing; ±250,000 subdivision code, superior to six-amplification gearing method, reaching international advanced level.
Deformation measurement range: 1–100% FS
Measurement accuracy: 0.5 grade
Resolution: 1/1,000,000
Equipped with high line-count photoelectric encoder servo motor for fast transmission and high accuracy.
Measurement And Control Software
Software Features:
1. Performs tensile, compression, bending, shear, tearing, and peeling tests.
2. Calculates parameters such as maximum force, yield force, average peeling force, maximum deformation, yield point, and modulus of elasticity.
3. Automatic return: When the test is complete, the beam returns automatically to initial position at high speed (if enabled).
4. Curve processing, multi-sensor support, graphical interface, flexible data processing, and compatibility with Windows 7/10.
5. Integrates easily with Microsoft Office; test results can be exported and analyzed through curves.
6. Results comparison: Display test curves in different colors for reproduction, magnification, and analysis.
7. Test report: Allows direct printing and exporting to PDF, Word, or Excel formats.
8. Language support: Switch between Simplified Chinese and English, with automatic translation of database fields.
9. Unit support: Standard, kg-cm, Lb-Inch (imperial), and six other unit systems to meet different regional standards.
10. Test mode output structure:
– Tensile: Maximum force, tensile strength, yield strength, elongation at break, modulus of elasticity.
– Bending: Maximum force, bending strength, deflection, modulus of elasticity.
– Compression: Maximum force, compression strength, yield strength, modulus of elasticity.
– Tear: Maximum force, tear strength.
– Peeling: Maximum, average, and minimum peeling force and strength.
11. Original data view: Enables viewing raw material test data files.
12. Communication interface: Optoelectronic isolation prevents damage from non-common ground issues; supports hot-swapping.
13. Authority hierarchy: Role-based access for testers, management, and manufacturers.
14. Additional features: Supports fixed force, fixed time, guard displacement, reciprocating tests, and custom fatigue options.
Technical Parameters
Capacity Selection: 10N, 20N, 50N, 100N, 200N, 500N, 1KN, 2KN, 5KN (optional)
Control Mode: Full computer control mode with powerful software.
Force Unit: N, kN, gf, kgf, lbf, kP, tf (SI), tf (long), etc.
Length Unit: mm, cm, inch, m, km, µm, etc.
Force Resolution: 1/1,000,000
Accuracy: ±0.1%
Stroke Resolution: 1/1,000,000mm
Effective Stroke: Approx. 1300mm
Speed Range: 0.01–500mm/min (customisable)
Testing Space: Ø 140mm
Stop Mode: Overload stop, emergency stop key, automatic specimen destruction stop, upper/lower limit stop.
Machine Power: Servo motor drive
Machine Size: 54 × 60 × 162cm (W × D × H)
Machine Net Weight: 70kg
Power: 400W
Power Supply: 220V 50–60Hz
Included Accessories: RS232/USB connection cable, software package
Optional Accessories: Clamp

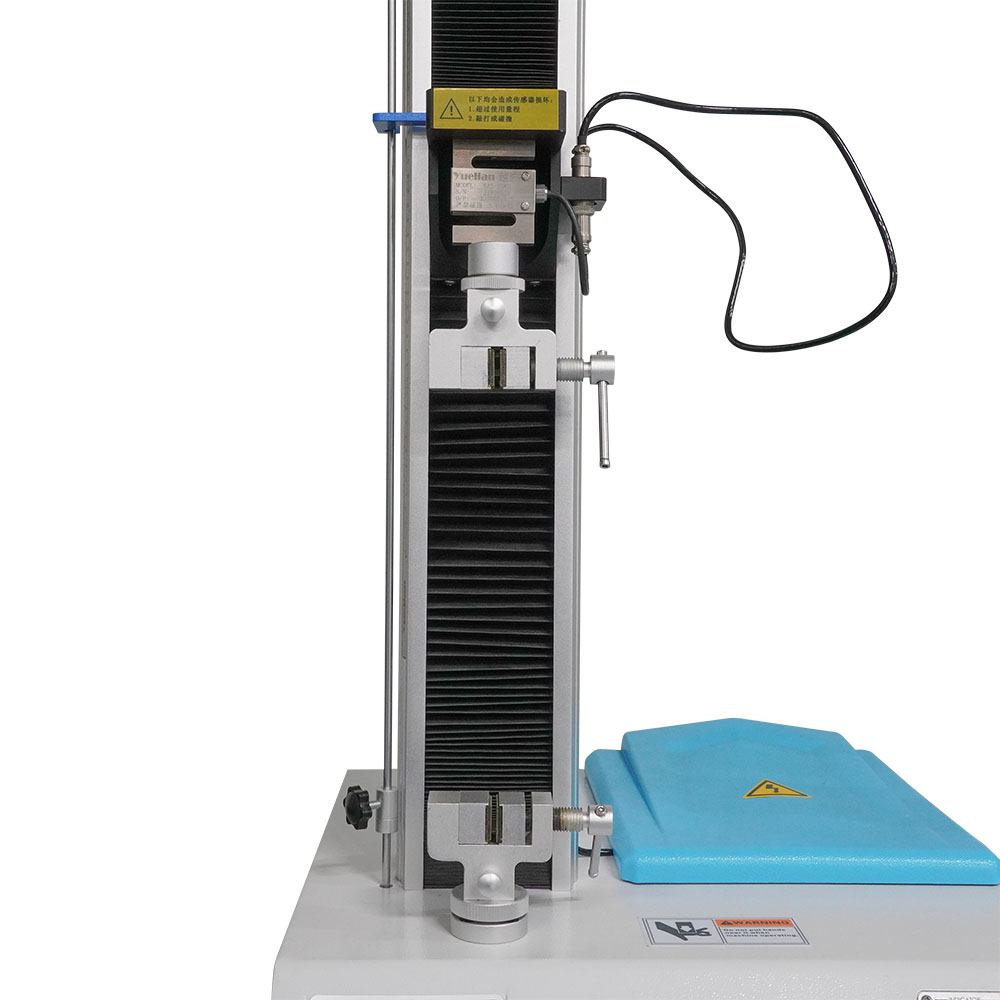

Optional Fixtures
CT-001 90° Peeling Fixture
CT-002 180° Peeling Fixture

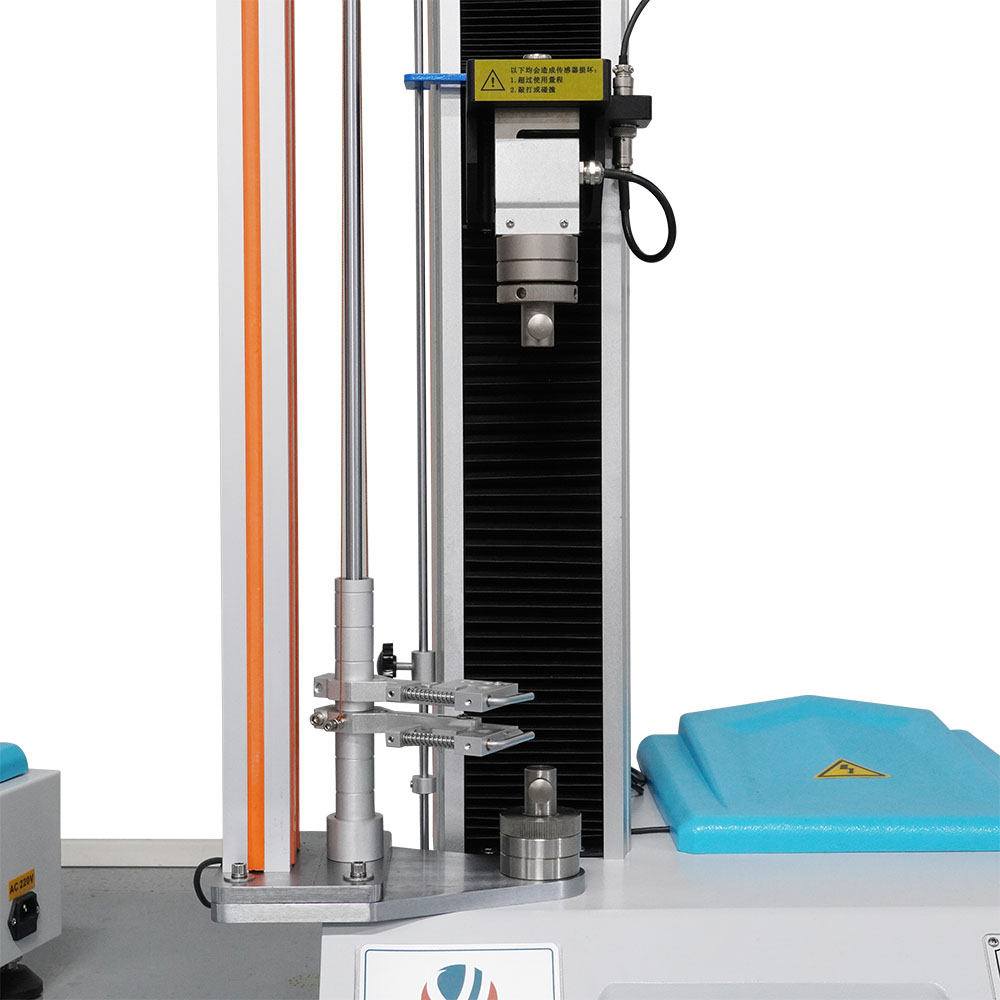

CT-003 Ring Type Initial Adhesion Fixture
CT-004 Unwinding Force Fixture
CT-009 Pneumatic Fixture
CT-012 Puncture Fixture
